Difference Between a Hybrid Pulse Capacitor and A Capacitor?

The distinction between a hybrid pulse capacitor (HPC) and a traditional capacitor lies in their design, materials, applications, and performance characteristics. Capacitors are essential components in electronic circuits, storing and releasing electrical energy as needed. While traditional capacitors serve general purposes, hybrid pulse capacitors are engineered for advanced performance, particularly in applications requiring high energy density and rapid discharge rates. The HPC series—short for Hybrid Pulse Capacitor—integrates lithium-ion battery technology with supercapacitor technology, creating a next-generation solution that combines the strengths of both for enhanced efficiency and reliability.

Basic Principles and Construction

Traditional Capacitor:

A traditional capacitor generally consists of two metal plates separated by a dielectric material. When voltage is applied, an electric field forms across the dielectric, allowing the capacitor to store energy. The capacitance, measured in farads, depends on the plate surface area, the distance between the plates, and the properties of the dielectric. Dielectric materials can range from ceramics and plastic films to electrolytic substances, each affecting the capacitor’s performance and suitable applications.

However, traditional supercapacitors have limitations: they typically operate at low voltages, offer relatively small storage capacity, and can only tolerate short-duration pulses. In contrast, the HPC series can achieve a maximum voltage of 4.1 V and significantly improves both energy capacity and pulse discharge time compared to conventional supercapacitors, making it a more powerful and versatile solution.

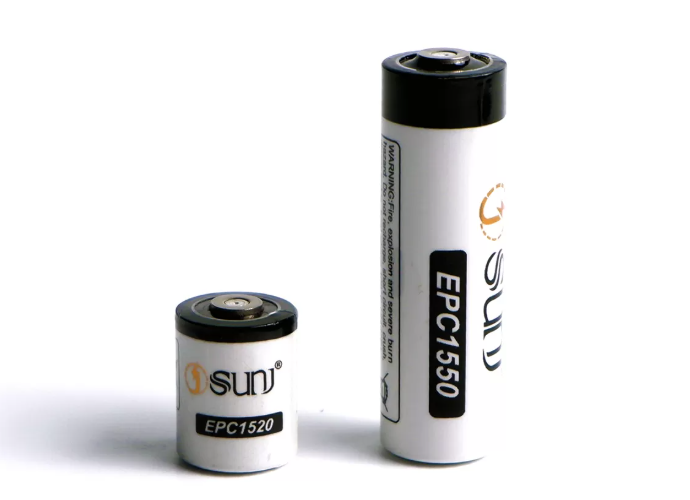

Hybrid Pulse Capacitor:

Hybrid pulse capacitors combine features of multiple capacitor types, often integrating both electrostatic and electrochemical energy storage mechanisms. They are built with advanced materials, including high-conductivity electrodes and hybrid electrolytes, to optimize performance. This design merges the high energy storage capacity of batteries with the rapid charge and discharge capabilities of traditional capacitors. The HPC series, in particular, offers exceptionally low self-discharge rates—comparable to primary lithium batteries—surpassing the performance of conventional supercapacitors and providing superior reliability for demanding applications.

Performance Characteristics

Energy Density and Power Density:

A key distinction between traditional capacitors and hybrid pulse capacitors lies in their energy and power densities. Traditional capacitors typically offer high power density but low energy density, meaning they can deliver energy quickly but store relatively little. In contrast, hybrid pulse capacitors are engineered to store significantly more energy (high energy density) while still providing rapid energy release (high power density), bridging the gap between batteries and conventional capacitors.

Charge/Discharge Rates and Efficiency:

Traditional capacitors can charge and discharge within microseconds to milliseconds, making them ideal for applications requiring instantaneous power delivery. However, they may experience energy losses due to leakage currents and dielectric absorption, which vary based on the materials used. Hybrid pulse capacitors, built with advanced materials and hybrid construction, minimize these losses, offering higher efficiency. They maintain rapid charge/discharge capabilities while retaining their stored energy longer, making them suitable for applications that demand both quick bursts of power and sustained energy delivery.

Applications

Traditional Capacitor Uses:

Traditional capacitors are ubiquitous in electronic devices, serving roles from simple timing and filtering to energy storage in circuits like flash photography. They are commonly used for smoothing power supply fluctuations (decoupling capacitors) and tuning frequencies in radios and other signal-processing devices. Their primary function is rapid energy delivery and signal stabilization, making them essential for general electronic applications.

Hybrid Pulse Capacitor Uses:

Hybrid pulse capacitors excel in applications that require both high energy storage and rapid power delivery. Examples include electric and hybrid vehicle regenerative braking systems, power grid stabilization, high-power laser systems, and advanced two-way wireless communication devices. HPC Series Li-ion batteries combine long operational life—up to 20 years and 5,000 full recharge cycles—with the ability to store and release high-current pulses. They operate reliably across a wide temperature range (-40°C to 85°C, with storage up to 90°C) and can be recharged via DC power or integrated with photovoltaic solar systems and other energy harvesting technologies. HPC Series batteries are available in standard AA and AAA configurations, as well as custom battery packs, offering versatile solutions for demanding industrial, automotive, and renewable energy applications.

Advantages and Limitations

Traditional Capacitor:

Traditional capacitors are simple, reliable, and available in a wide range of sizes and capacitance values. They are generally cost-effective and easy to manufacture. However, their energy storage is relatively low compared to batteries, and their performance can be affected by temperature variations and aging over time.

Hybrid Pulse Capacitor:

Hybrid pulse capacitors combine the benefits of both capacitors and batteries. They offer higher energy density than traditional capacitors and faster charge/discharge rates than conventional batteries. However, they are typically more expensive and complex to manufacture. Their performance can be sensitive to environmental conditions, and they may require advanced control systems to manage charging and discharging efficiently.

While traditional capacitors remain essential for a broad range of electronic circuits, hybrid pulse capacitors represent a technological advancement, addressing modern energy storage and delivery challenges. Choosing between a traditional capacitor and a hybrid pulse capacitor depends on specific application requirements, including energy density, power density, charge/discharge speed, and cost considerations.

In summary, although both types store energy via electric fields, the design, materials, and performance characteristics of hybrid pulse capacitors make them ideal for demanding applications that require both high energy and high power.
