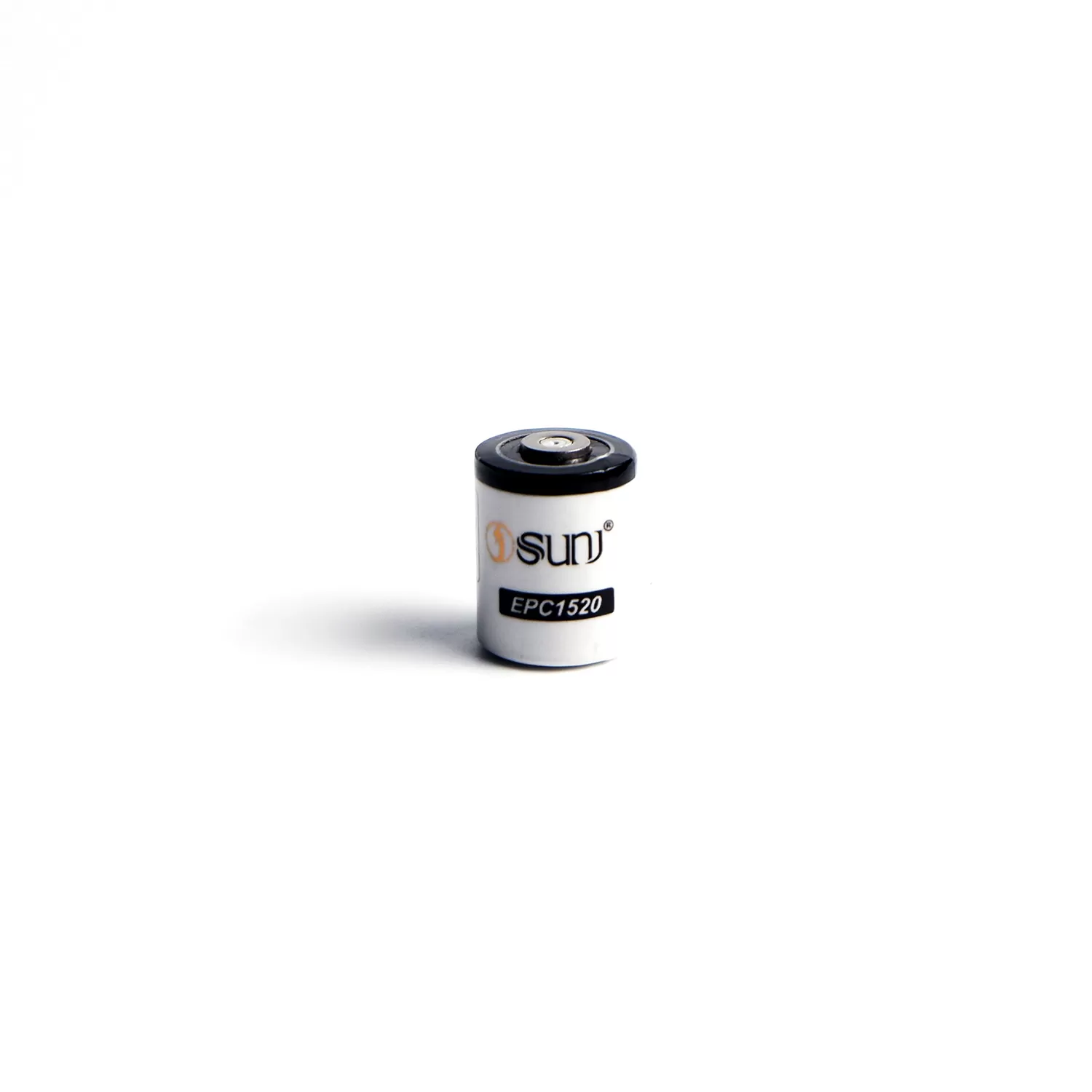

EPC1520 Hybrid Pulse Capacitor
EPC1520 Hybrid Pulse Capacitor delivers 2 A peak pulses, ultra-low ESR, 100k cycle life, wide temperature range & 20‑year lifespan for IoT & tracking.
EPC1520 Hybrid Pulse Capacitor delivers 2 A peak pulses, ultra-low ESR, 100k cycle life, wide temperature range & 20‑year lifespan for IoT & tracking.
The EPC1520 Hybrid Pulse Capacitor uniquely combines lithium-ion energy density with supercapacitor-level pulse power, offering industry-leading performance in a single compact unit.
Engineered for applications requiring occasional high-current bursts, it stands ready to support GPS trackers, remote sensors, AMR/AMI metering, IoT gateways, RFID systems, and emergency communication devices—especially in outdoor or harsh environments.
Specifications
| Item | Details |
| Open-circuit voltage : | ≥3.64 V |
| Max charging voltage : | 3.95 V |
| Cut-off Voltage : | 2.5 V (Discharge below 2.5V (RT) / 2.0V (-40°C) may raise internal resistance) |
| Nominal Charge Current : | 20 mA |
| Maximum Charge Current : | 100 mA |
| Max. Discharge Current (Constant ) : | 500 mA |
| Max. Discharge Current (Pulse) : | 2000 mA |
| Leakage Current@RT (ER+EPC Hybrid Power System) : | 1.0 μA |
| Leakage Current@80°C (ER+EPC Hybrid Power System) : | 5.0 μA |
| Nominal Capacity : | 140As @ 3.67 V |
| 210As @ 3.90 V | |
| Internal Resistance : | ≤200 mΩ (RT@1kHz) |
| Operating Temperature Range : | -40℃~+85℃ |
| Storage Temperature Range : | -40ºC ~+60ºC |

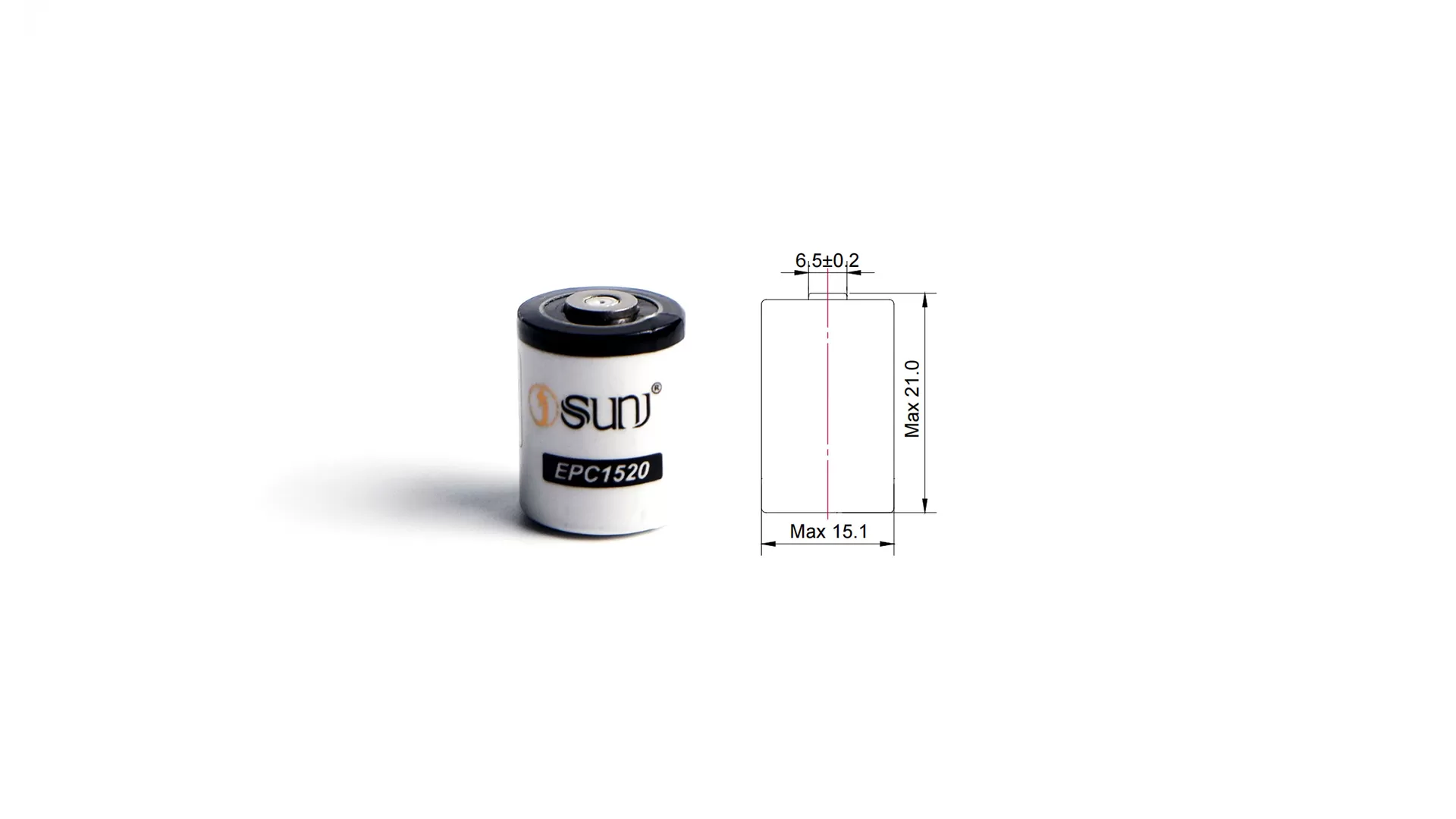

| Dimension : | Φ: 15.1 mm(Max), H: 21.0 mm(Max) |
| Weight : | 10.0g |
▎Storage: Store in a clean, dry, and well-ventilated area. The temperature should preferably be below +20°C and must not exceed +30°C.
Discharge Characteristics

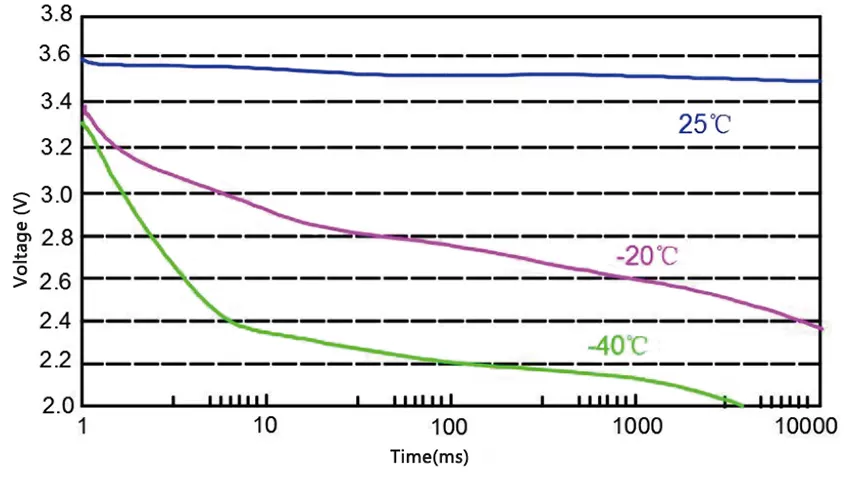

200 mA discharge after 3.67 V charge at various temperatures ↓

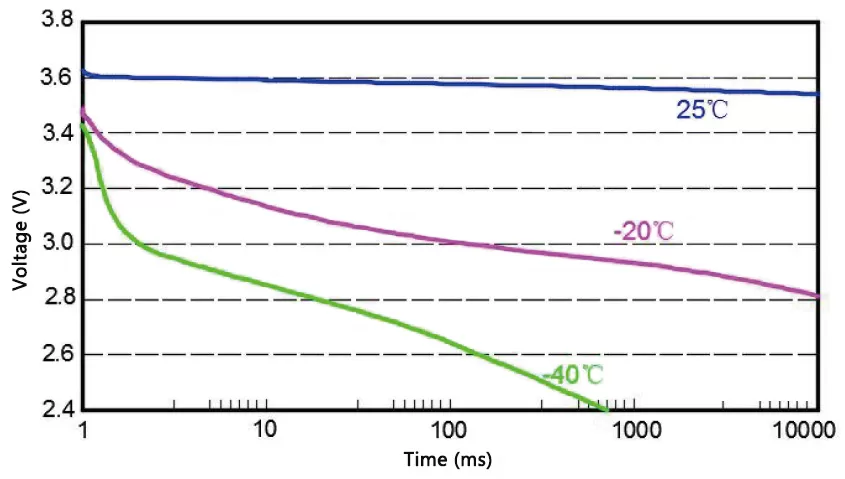

350 mA discharge after 3.67 V charge at various temperatures ↓

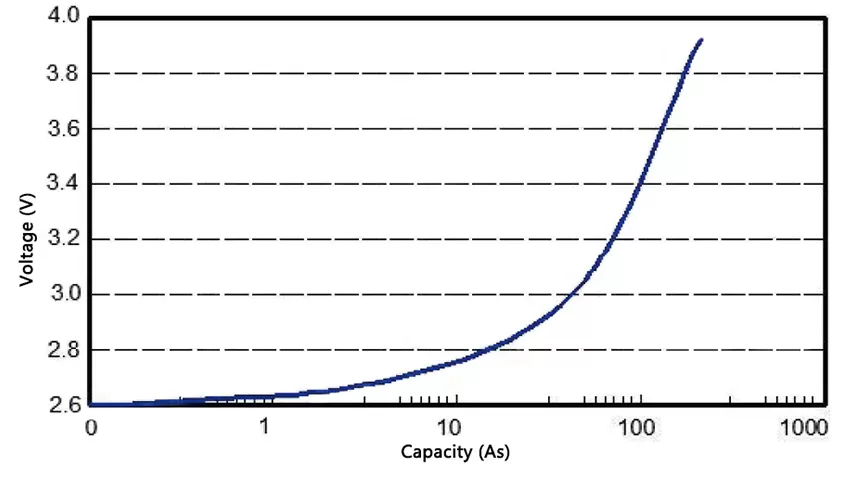

Capacity vs. Open Circuit Voltage (50 mA) at Room Temperature ↓
Warning
● Do not charge the hybrid capacitor above 4.1V.
● Avoid over-discharge, short circuit, or heating above 100°C.
● Do not incinerate or immerse in water.
● Discharging the EPC1520 below 2.0V may result in performance degradation or increased internal resistance.
Key Features & Benefits
| Feature | Benefit |
| 2000 mA peak pulse current | Delivers reliable bursts for wireless modules or radio transmitters |
| Ultra-low ESR (<200 mΩ) | Maximizes efficiency and supports fast discharge/recharge |
| Wide temperature range | Operates from -40 °C to +85 °C (up to 90 °C storage), ideal for extreme conditions |
| Extensive cycle life | >100,000 cycles or ~1,000 full-charge cycles for decades of use |
| Long-term reliability | Up to 20 years operational lifespan with <2% annual self-discharge |
| High safety integrity | Glass-to-metal hermetic seal, built-in pressure relief and anti-explosion valve |
| Rechargeable use | Supports DC charging, PV systems, and energy-harvesting architectures |
Ideal Use Cases
● GPS and GSM tracking devices
● Smart utility meters (AMR/AMI)
● Emergency and communication systems
● RFID and data-logging sensors
● Intelligent transportation and cargo tracking
● Energy harvesting and solar-assisted modules
Technical Integrations

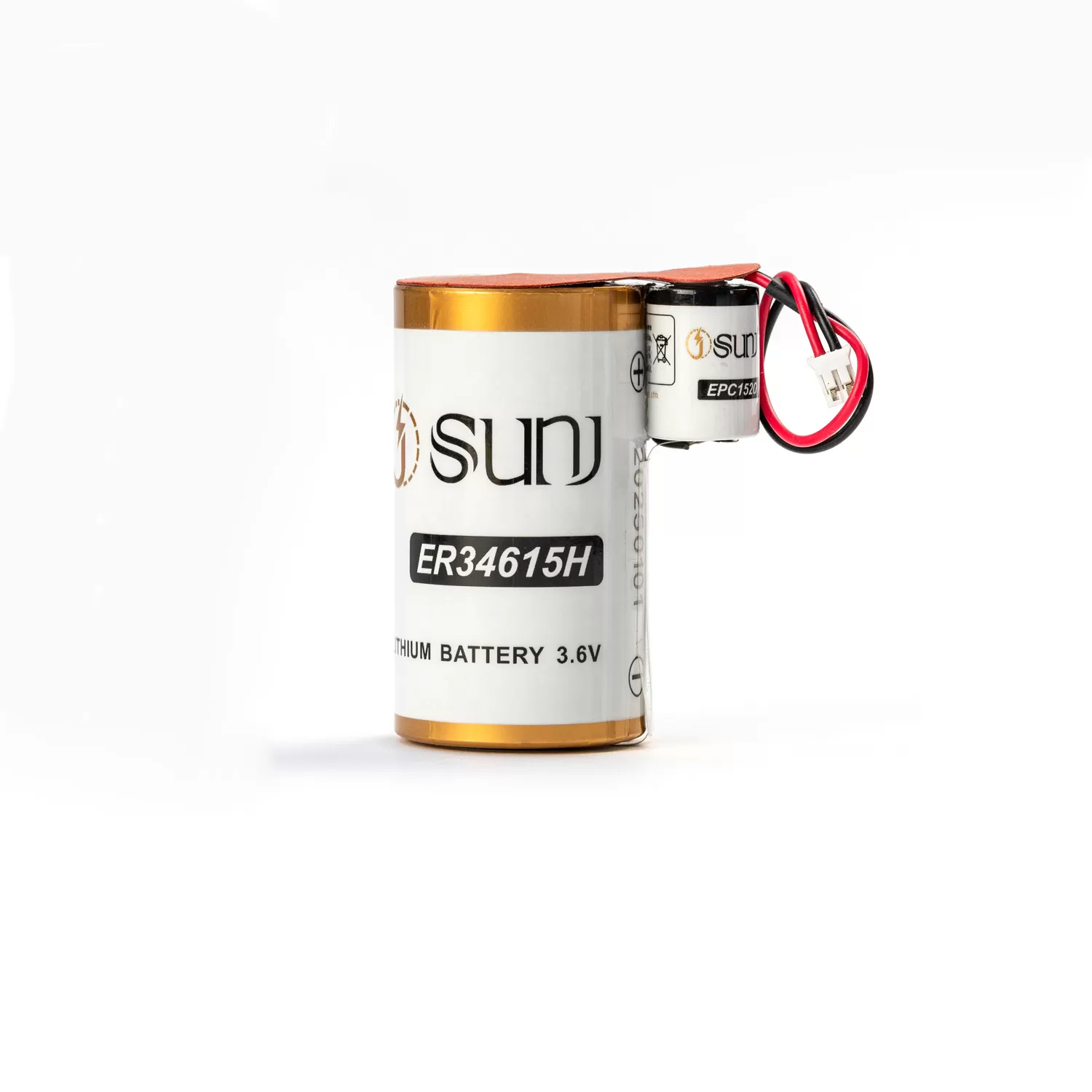

Designed as a drop‑in companion for Li‑SOCl₂ batteries, the EPC1520 prevents “voltage lag” by smoothing the power delivery. Its hybrid architecture supports long-term background energy via lithium and enables bursts by capacitor—for solar‑powered remote modules or RTUs needing occasional high-current draw.
Recommended Storage & Usage
● Do not exceed 4.1 V charging voltage
● Avoid discharging below ~2.5 V
● Keep below 100 °C; avoid fire, water immersion, and short circuits
● Ideal storage temperature: under 30 °C, humidity <60%
EPC1520 Hybrid Pulse Capacitor redefines what's possible in compact, long-lasting, high-current power solutions. Impressively combining decades of lithium reliability with supercapacitor performance, it delivers an energy solution that endures—and performs—when it matters most.
