CR26500

Cylindrical Li-MnO2 Battery with High Power

Technical Specification

Product Type

Lithium Manganese Dioxide Battery (Li-MnO2 battery)



Key Features

High and stable working voltage

Low self-discharge rate (annual self-discharge rate less than 2% at 25℃)

High energy density (400wh/kg)

Nickel-plated steel housing

Airtight guarantee

Comply with IEC60086-4 safety standard

No transport restrictions


Basic Parameters

ItemSubjectFeaturesRemark

SpecificationCR26500

Norminal voltage3.0V

Nominal discharge current5mA

Norminal capacity5400mAh5mA, 25±3℃,cut-off at 2.0V

Max. continuous discharge current2000mA

Max. available pulse current3000mA

Operating temperature-40℃~+70℃

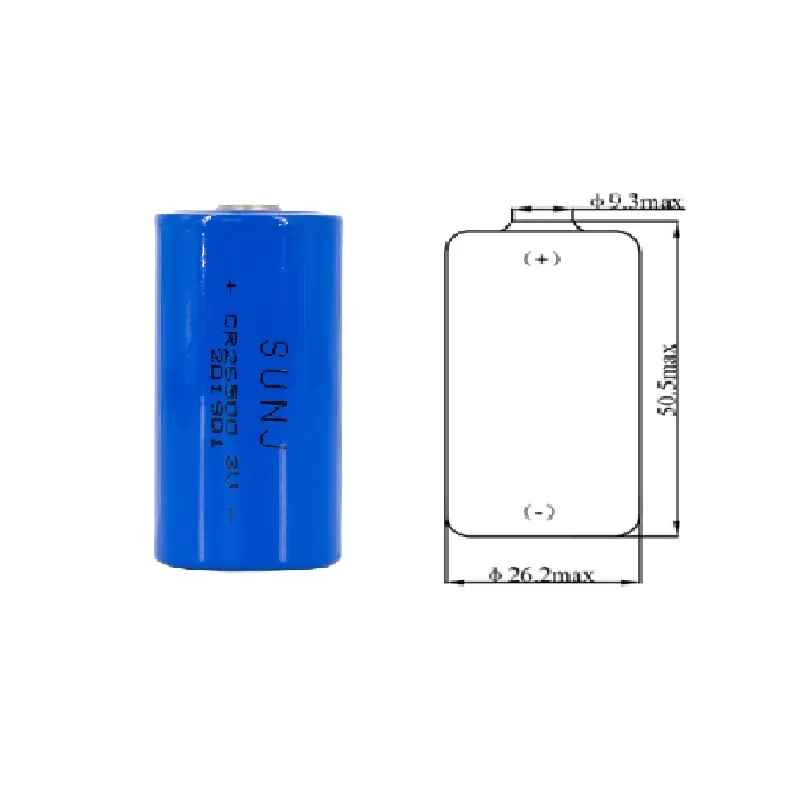

Dimensionφ26.2x50.5See attached figure

Standard weightAbout  62g

Annual self-discharge rate≤2%25±3℃,RH 65±10%

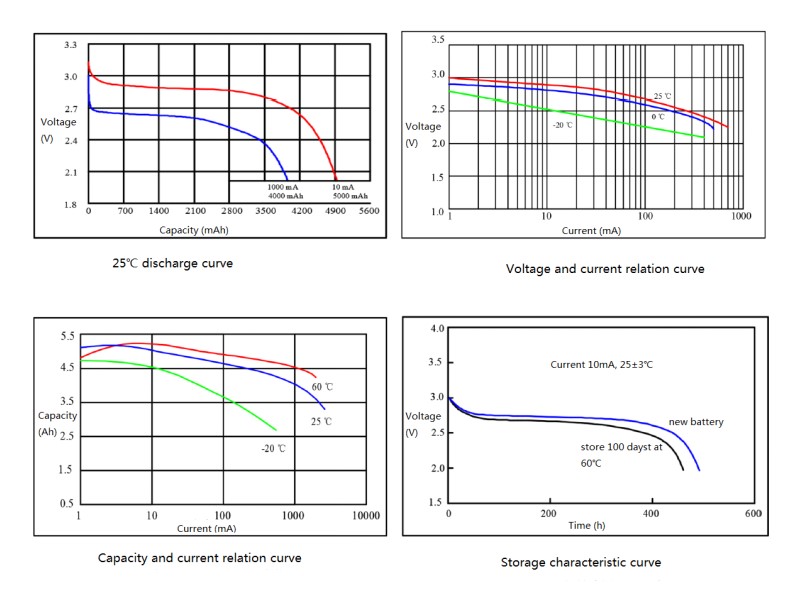

Electrical Performance Graph

CR26500
