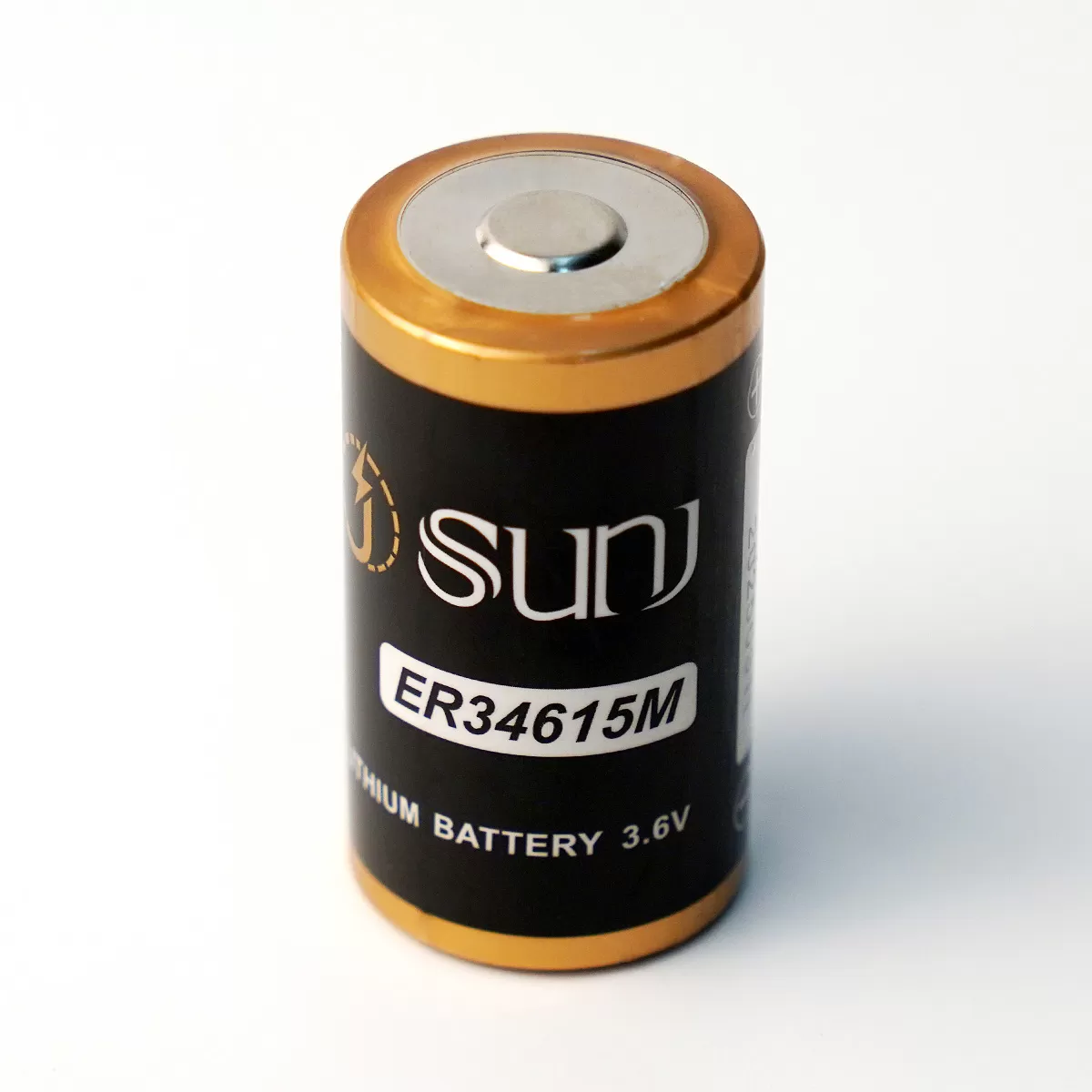

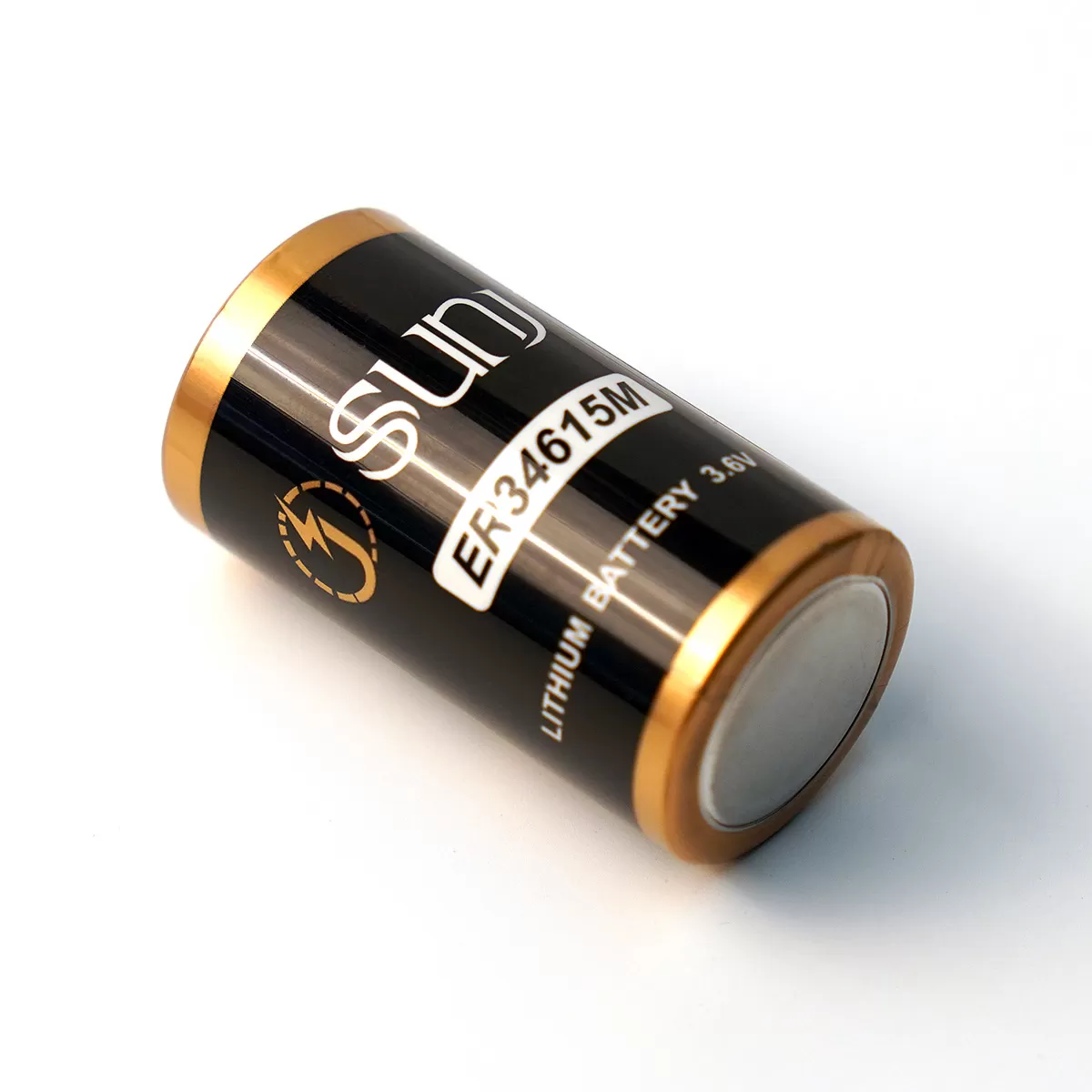

ER34615M D 3.6V
ER34615M D 3.6V Lithium Thionyl Chloride Battery – High Power, Spiral-type Design, Long Life, Reliable Performance.
ER34615M D 3.6V Lithium Thionyl Chloride Battery – High Power, Spiral-type Design, Long Life, Reliable Performance.
The ER34615M is a high-power, D-size 3.6V Lithium Thionyl Chloride (Li-SOCl₂) battery, engineered for industrial and commercial applications demanding stable, high-current output and long operational life. Featuring a spiral-type construction, this non-rechargeable lithium battery delivers a nominal capacity of 13,000 mAh and an energy density exceeding 450 Wh/kg.
Its rugged stainless steel casing and hermetic glass-to-metal seal ensure exceptional durability and leak resistance, even in extreme temperatures from -55°C to +80°C. Ideal for smart metering, medical instrumentation, industrial automation, and critical electronics, the ER34615M provides long-lasting, dependable power with a shelf life of up to 10 years.
All SUNJ batteries are designed to withstand reasonably foreseeable misuse and are rigorously tested for compliance with international standards for performance, safety, and transportation.
Basic Parameters
| Subject | Parameters | Remark |
| Specification | D | Spiral-type, stainless steel shell, fully sealed structure. |
| Nominal voltage | 3.6V | –– |
| Nominal capacity | 13000mAh | 15mA, 25±3℃，cut-off at 2.0V |
| Max continuous discharge current | 1800mA | –– |
| Max available pulse current | 3500mA | –– |
| Operating temperature | -55℃~+80℃ | Elevated operating temperatures can cause reduced pulse capacity and low voltage readings. For temperatures exceeding +40℃ or falling below -20℃, consult SUNJ. |

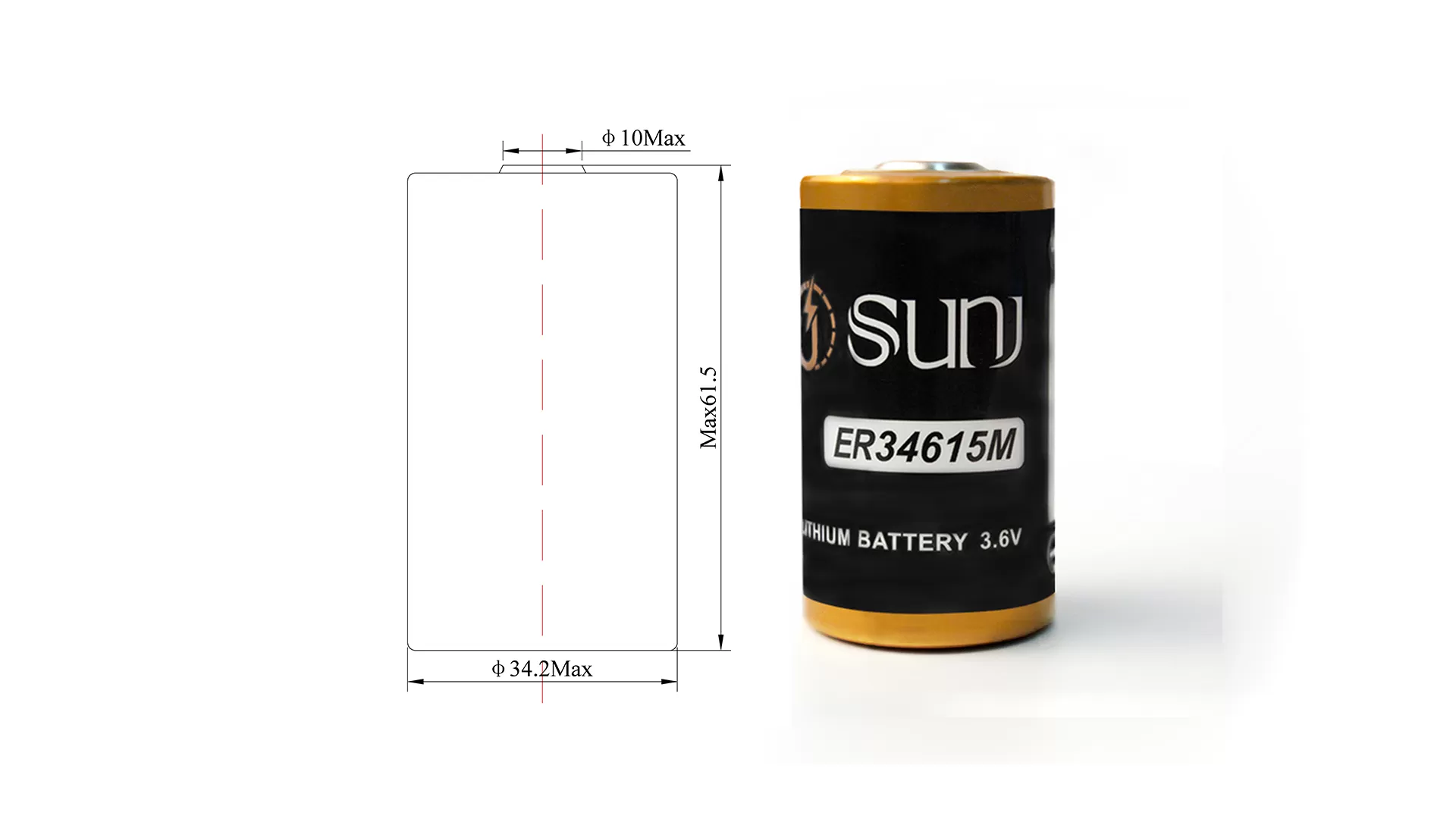

| Dimension | φ34.2x61.5mm | Figure attached |
| Standard weight | About 109g | –– |
| Annual self-discharge rate | ≤1% | 25±3℃，RH 65±10% |
Compatible Part Numbers
SL-2780, TL-5930, TL-4930, TL-2300, TL-2300/S, Xeno XL-205F, LSH20, LS33600, SB-D02, 1770-XO, 1771-BL, 61104501, 6EW1-000-0AA, 6EW1-001-0AA, 6EW10000AA, 6EW10010AA, 700071, T20/41, T20/51, and others.
▎Note: Compatibility is based on voltage, dimensions, and performance. Please consult our technical support team for replacement or installation advice.
▎Storage Guidelines: Store in a clean, cool (preferably <20°C, not exceeding 30°C), dry, and well-ventilated environment.
Flexible Single Cell and Pack Options
SUNJ offers flexible battery configurations to suit various applications:
◆ S: Standard Terminals
◆ T: Solder Tabs
◆ P: Axial Pins
◆ Custom Options: Available upon request
▎Note: For projects requiring higher voltage or capacity, battery packs can be customized by combining multiple cells.
Warnings
● This is a non-rechargeable lithium battery. Do not charge.
● Keep away from heat, fire, flammable or explosive materials.
● Do not short-circuit, crush, disassemble, incinerate, or expose to temperatures above 100°C.
● Operate only within the recommended temperature range.
Electrical Performance Graph
ER34615M Discharge Curve @25°C ↓

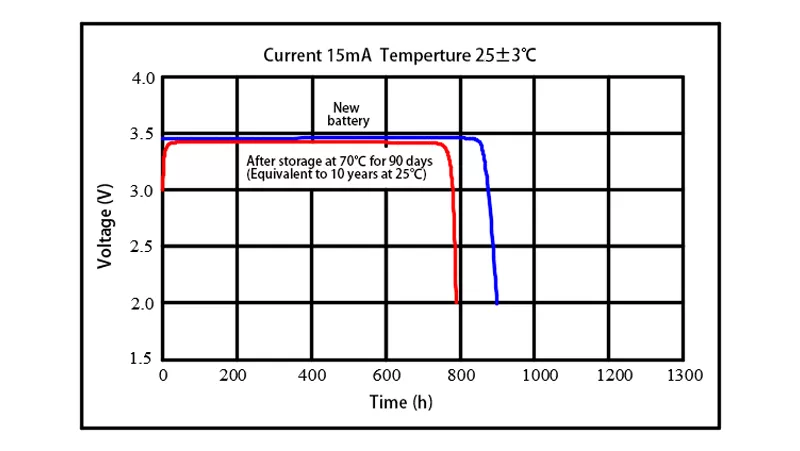

Voltage Recovery After Storage ↓
Voltage vs. Temperature curve ↓
Capacity vs. Current (2.0V cutoff) ↓
Key Features
● High pulse capability and continuous high-rate discharge performance
● Stable Operating Voltage – 3.6V output for consistent device performance
● Spiral Electrode Design – Optimized for high power and moderate pulse discharge
● Long Shelf Life – <1% annual self-discharge at 25°C; 10+ years of reliable storage
● High Energy Density – >450 Wh/kg, ideal for compact or space-sensitive devices
● Broad Operating Temperature – Reliable from -55°C to +80°C
● Non-Flammable Electrolyte – Enhanced safety per IEC60086-4 and UL1642 standards
● Durable Construction – Stainless steel housing with hermetic glass-to-metal seal
● Transport Compliant – UN38.3, RoHS, and MSDS certified for air, sea, and land shipping
● Excellent Passivation Resistance
● Low Magnetic Signature – Suitable for precision and sensitive equipment
Application Fields
The ER34615M is widely used in applications requiring stable, long-term power in harsh environments, including:
● IoT devices and remote data acquisition systems
● Alarm and security systems
● Automotive electronics and telematics
● GPS tracking and fleet management
● Medical instruments and scientific sensors
● Industrial automation and PLC memory backup
● Military and aerospace electronics
● Oil and gas exploration equipment
● Smart meters and AMR systems
● RFID, real-time clocks, and remote monitoring
● Marine devices and navigation buoys
● Professional and consumer electronics
Power Your Innovations with SUNJ ER34615M Batteries!
Looking for a powerful, dependable lithium battery for your industrial or smart device applications? SUNJ’s ER34615M D-size 3.6V lithium battery delivers superior safety, durability, and long-lasting energy. Benefit from factory-direct pricing, technical consultation, and fast international shipping. Contact us today for tailored energy solutions.
FAQs
Q1: How does the ER34615M differ from a standard D-size lithium battery?
A1: The ER34615M features a spiral design that provides higher pulse current capability and a large 13,000mAh capacity, while maintaining the same dimensions and voltage. For best compatibility, consult our technical team before use.
Q2: Is the ER34615M rechargeable?
A2: No, this is a primary (non-rechargeable) battery based on lithium thionyl chloride chemistry.
Q3: What certifications does this battery have?
A3: It is fully compliant with international standards, including IEC60086-4, UL1642, UN38.3, MSDS, and RoHS.
Q4: What devices are compatible with ER34615M?
A4: Suitable for use in smart meters, industrial sensors, GPS trackers, medical instruments, and more. It can replace D-size lithium batteries such as LS33600, TL-5930, TL-2300, XL-205F, LSH20, etc.
Q5: What is its shelf life and self-discharge rate?
A5: Up to 10 years of shelf life with less than 1% annual self-discharge at room temperature (25°C).
Why Choose ER34615M from SUNJ?
At SUNJ, we focus on delivering high-performance lithium primary batteries backed by expert support, bulk order capabilities, and fast worldwide logistics. Our ER34615M battery offers robust power delivery, long service life, and internationally certified safety—perfect for mission-critical applications.
Order Now – Bulk Discounts & Fast Shipping
Looking for a trusted ER34615M battery supplier? SUNJ provides expert advice, competitive pricing, and fast global delivery. Contact us today to secure your reliable energy source!

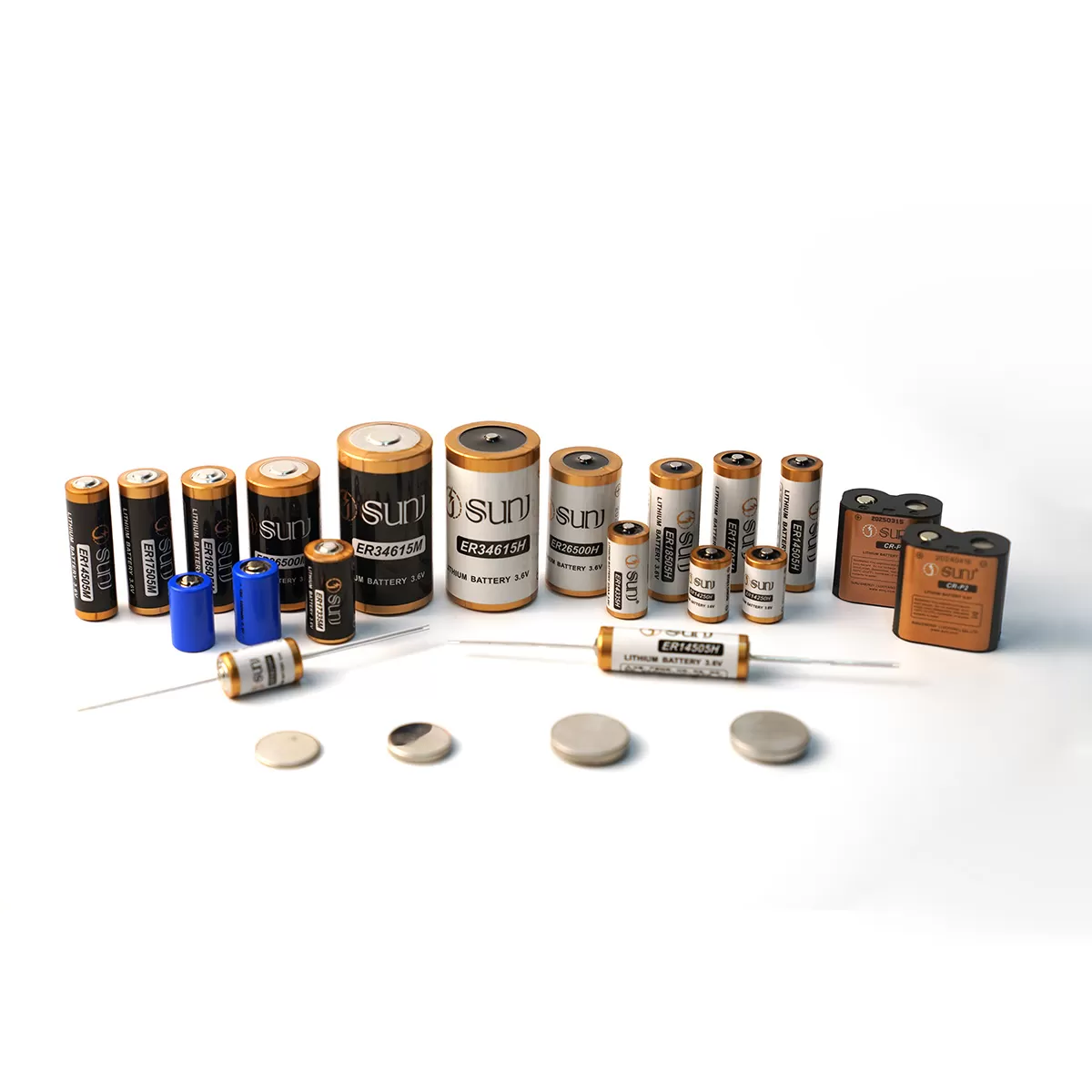

All Li-Socl2 Battery Specifications
| International Model Size | Max Dimension [mm] | Weight [g] | Nominal Voltage [V] | Nominal Capacity | Max Continuous Operating Current [mA] | Max Pulse Operating Current [mA] | |||
| Model No. | Size | End Voltage [V] | Nominal Current [mA] | Nominal Capacity[mAh] | |||||
| Bobbin Type | |||||||||
| ER10450H | AAA | Φ10.5*45.0 | 10 | 3.6 | 2.0 | 1.0 | 1000 | 20 | 50 |
| ER14250H | 1/2AA | Φ14.5*25.2 | 10 | 3.6 | 2.0 | 1.0 | 1200 | 20 | 50 |
| ER14335H | 2/3AA | Φ14.5*33.5 | 13 | 3.6 | 2.0 | 1.0 | 1650 | 40 | 100 |
| ER14505H | AA | Φ14.5*50.5 | 18 | 3.6 | 2.0 | 1.0 | 2700 | 50 | 100 |
| ER17335H | 2/3AA | Φ17.5*33.5 | 20 | 3.6 | 2.0 | 1.0 | 1900 | 50 | 100 |
| ER17505H | A | Φ17.5*50.5 | 24 | 3.6 | 2.0 | 2.0 | 3600 | 70 | 150 |
| ER18505H | ―― | Φ18.5*50.5 | 30 | 3.6 | 2.0 | 2.0 | 4000 | 100 | 150 |
| ER26500H | C | Φ26.2*50.0 | 53 | 3.6 | 2.0 | 2.0 | 8500 | 100 | 200 |
| ER34585H | ―― | Φ34.2*58.5 | 100 | 3.6 | 2.0 | 2.0 | 16000 | 150 | 300 |
| ER34615H | D | Φ34.2*61.5 | 103 | 3.6 | 2.0 | 2.0 | 19000 | 230 | 400 |
| ER261020H | CC | Φ26.2*102.0 | 100 | 3.6 | 2.0 | 2.0 | 17000 | 250 | 500 |
| ER341245H | DD | Φ34.2*124.5 | 200 | 3.6 | 2.0 | 5.0 | 36000 | 450 | 700 |
| ER9V | ―― | 17.0*26.5*48.5 | 34 | 10.8 | 6.0 | 1.0 | 1200 | 25 | 50 |
| Spiral Type | |||||||||
| ER14250M | 1/2AA | Φ14.5*25.5 | 10 | 3.6 | 2.0 | 2.0 | 800 | 100 | 200 |
| ER14335M | 2/3AA | Φ14.5*33.5 | 13 | 3.6 | 2.0 | 2.0 | 1350 | 200 | 600 |
| ER14505M | AA | Φ14.5*50.5 | 19 | 3.6 | 2.0 | 3.0 | 2100 | 400 | 1000 |
| ER17335M | 2/3A | Φ17.5*33.5 | 19 | 3.6 | 2.0 | 3.0 | 1700 | 400 | 1000 |
| ER17505M | A | Φ17.5*50.5 | 26 | 3.6 | 2.0 | 5.0 | 2800 | 400 | 1000 |
| ER18505M | ―― | Φ18.5*50.5 | 30 | 3.6 | 2.0 | 5.0 | 3500 | 500 | 1000 |
| ER26500M | C | Φ26.2*50.5 | 57 | 3.6 | 2.0 | 10 | 6000 | 1000 | 2000 |
| ER34615M | D | Φ34.2*61.5 | 109 | 3.6 | 2.0 | 15 | 13000 | 1800 | 3500 |
| ER9V | ―― | 17.0*26.5*48.5 | 34 | 10.8 | 6.0 | 1.0 | 1200 | 25 | 50 |
Selection Guidelines:
◆ High Current / Pulse Applications → Spiral-type Cells
◆ Long-Term, Low-Current Applications → Bobbin-type Cells
◆ Higher Capacity Needs → Larger Size Models
