ER17335M 2/3A 3.6V
ER17335M 2/3A 3.6V Lithium Thionyl Chloride Battery – High Power, Spiral-type Design, Reliable Performance, Long Life.
ER17335M 2/3A 3.6V Lithium Thionyl Chloride Battery – High Power, Spiral-type Design, Reliable Performance, Long Life.

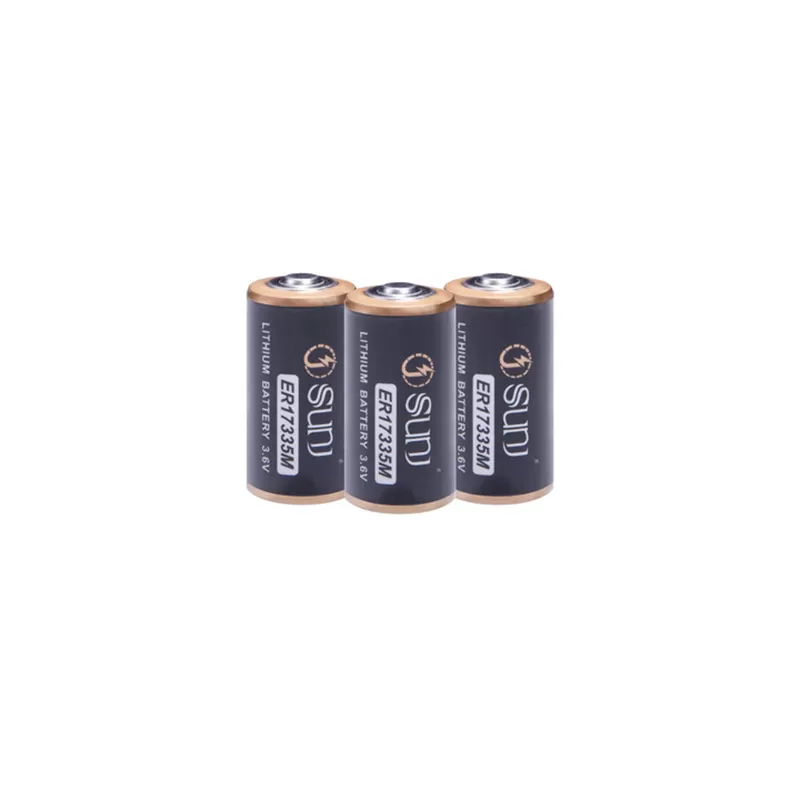

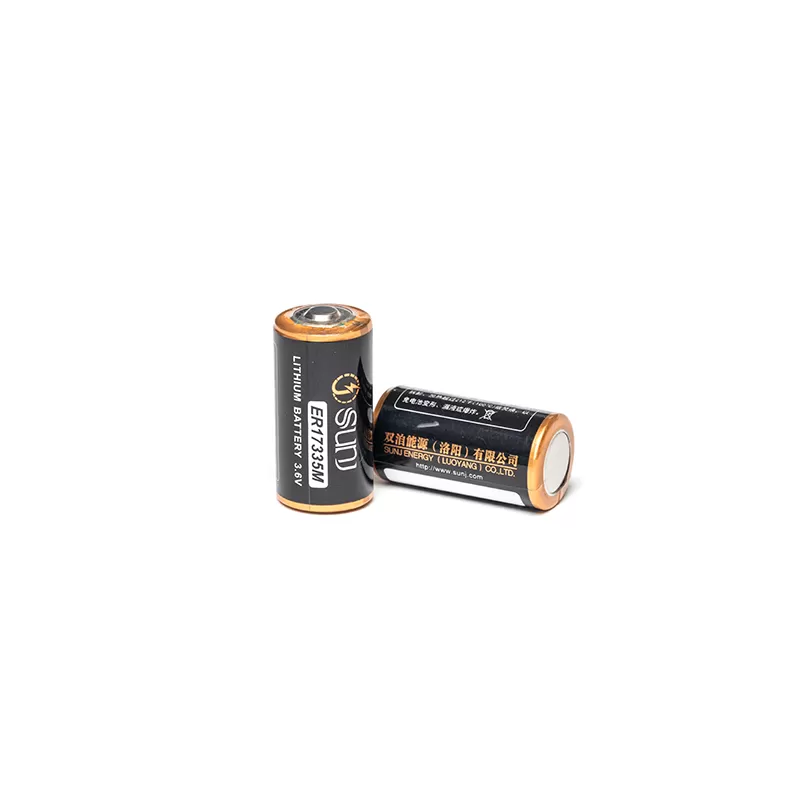

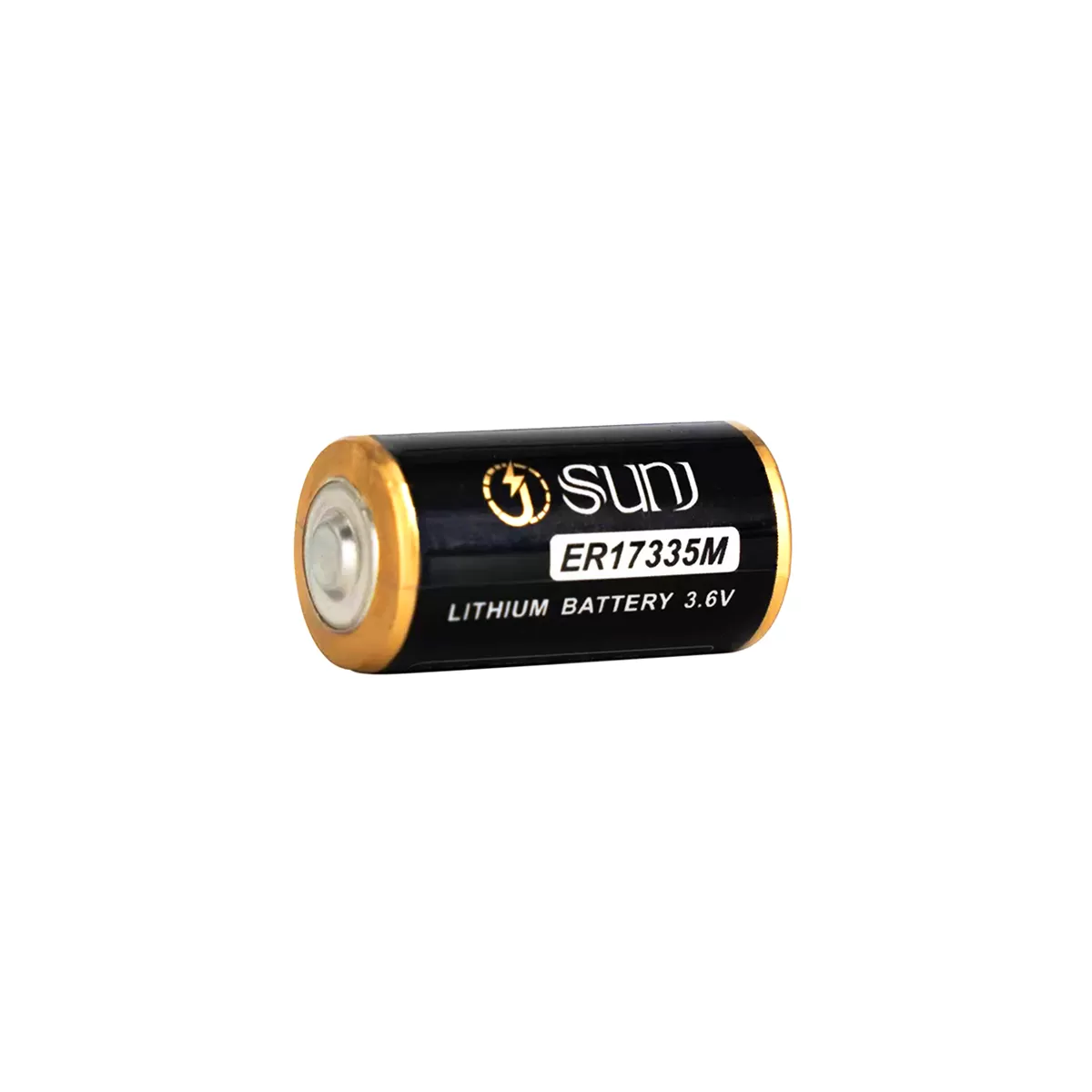

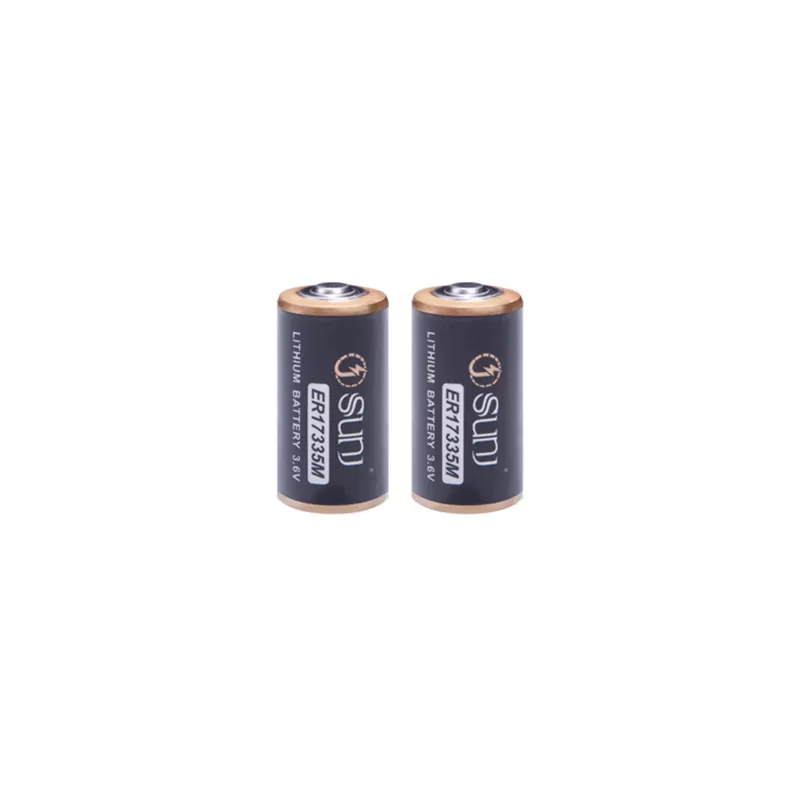

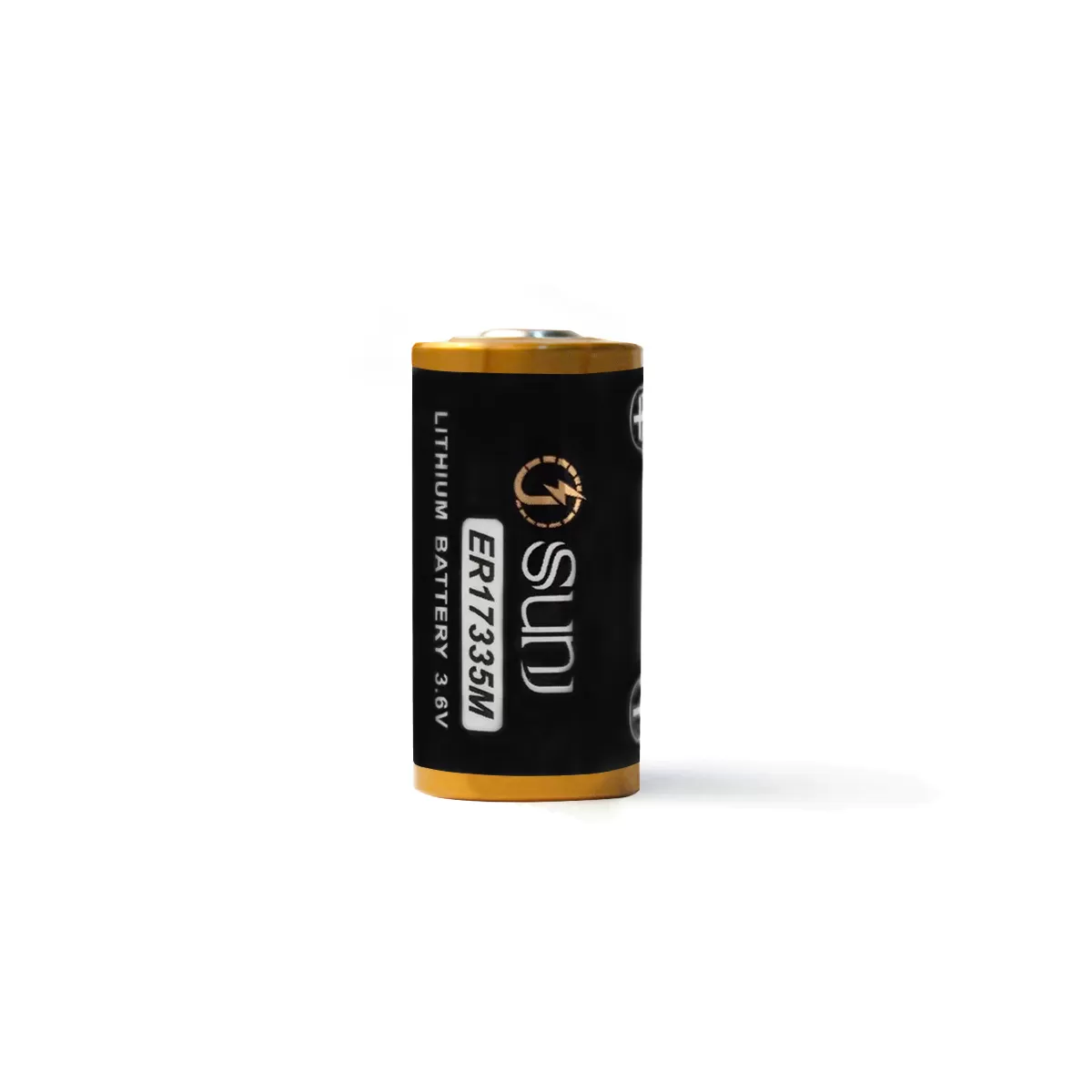

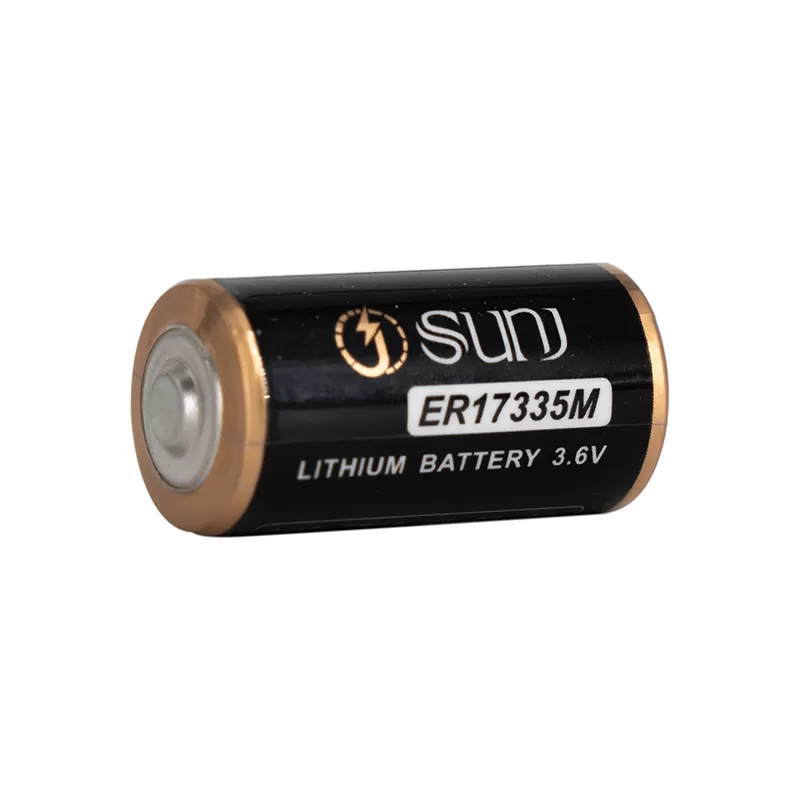

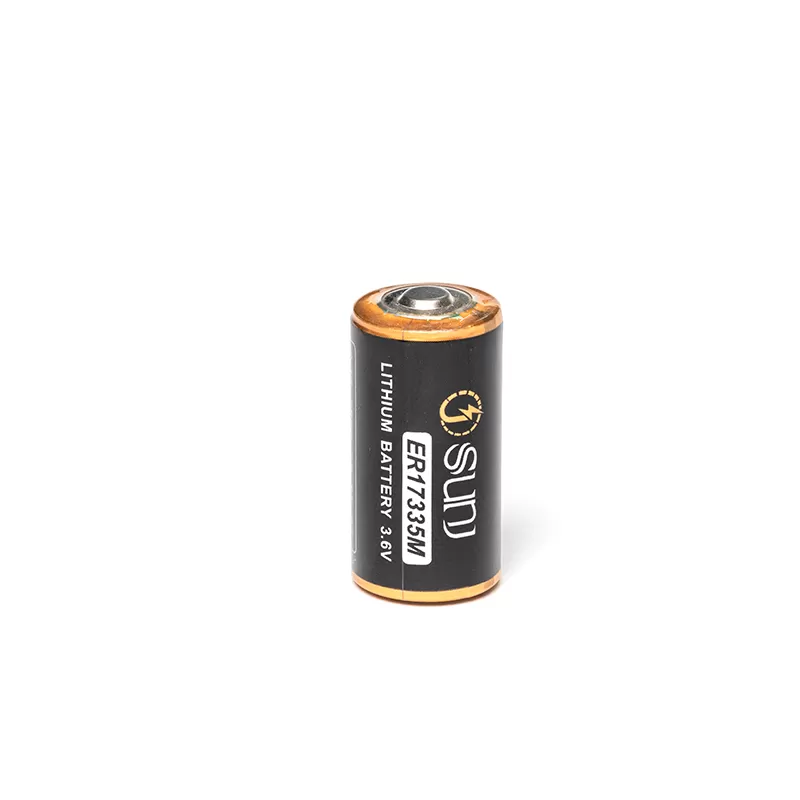

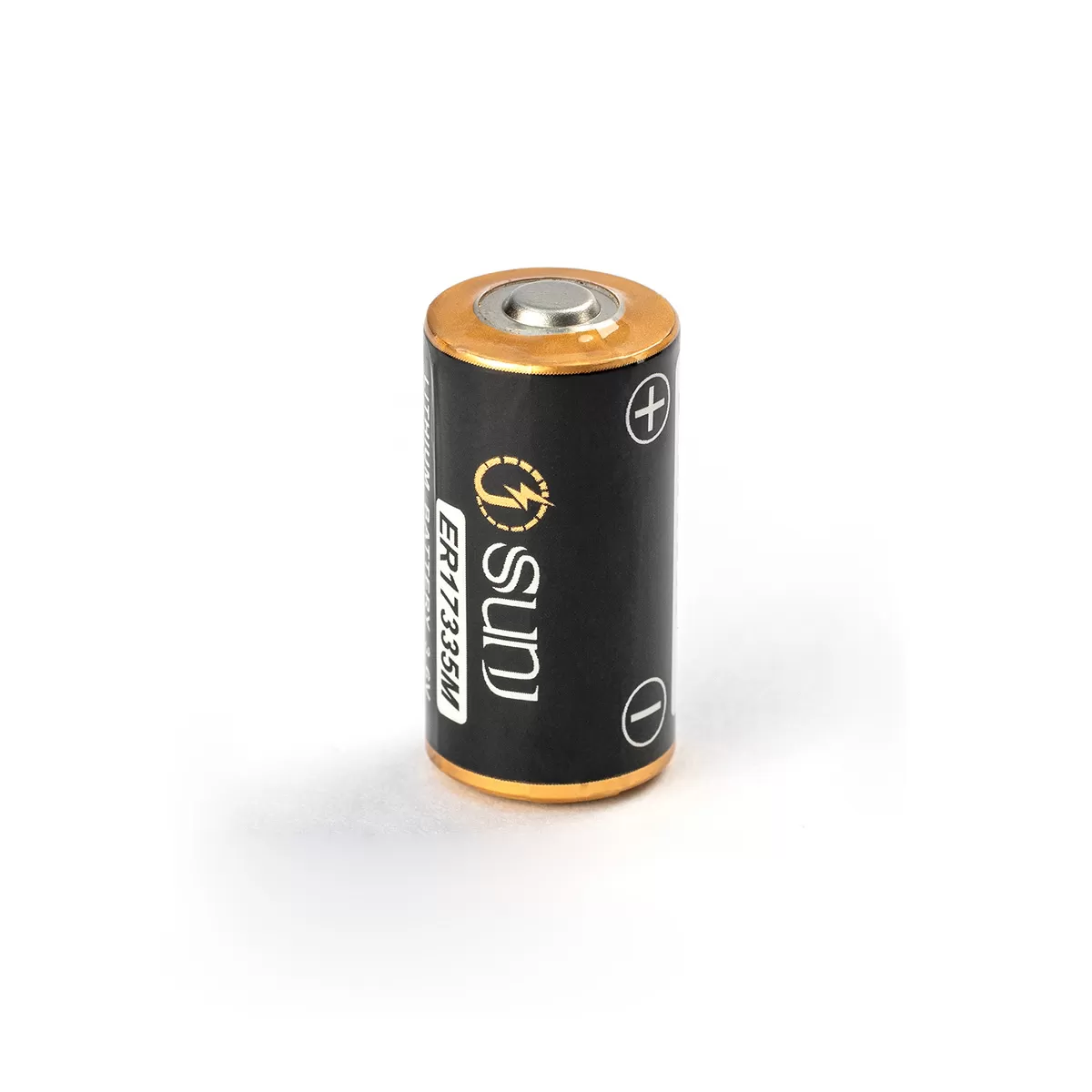

The ER17335M is a high-performance, spiral-wound 3.6V Lithium Thionyl Chloride (Li-SOCl₂) battery, specifically designed for applications requiring high pulse current, extended operating life, and exceptional reliability. With a nominal capacity of 1700mAh and energy density up to 450Wh/kg, it is ideal for demanding industrial, IoT, and high-drain electronic applications.
Engineered to perform in extreme conditions from -55°C to +85°C, the ER17335M maintains a stable output voltage with minimal self-discharge (<1% per year at 25°C), offering a shelf life of over 10 years under optimal storage. Its advanced lithium metal anode and carbon-thionyl chloride cathode ensure consistent performance during both continuous and pulse discharge. Certified to UN38.3, UL, and CE standards, this non-rechargeable lithium cell is safe for global transportation and industrial use.
All SUNJ batteries are designed to withstand reasonably foreseeable misuse and are tested in compliance with international performance, safety, and transport regulations.
Basic Parameters
| Subject | Parameters | Remark |
| Specification | 2/3A | Spiral-type, stainless steel shell, fully sealed structure. |
| Nominal voltage | 3.6V | –– |
| Nominal capacity | 1700mAh | 3mA, 25±3℃，cut-off at 2.0V |
| Max continuous discharge current | 400mA | –– |
| Max available pulse current | 1000mA | –– |
| Operating temperature | -55℃~+80℃ | Elevated operating temperatures can cause reduced pulse capacity and low voltage readings. For temperatures exceeding +40℃ or falling below -20℃, consult SUNJ. |

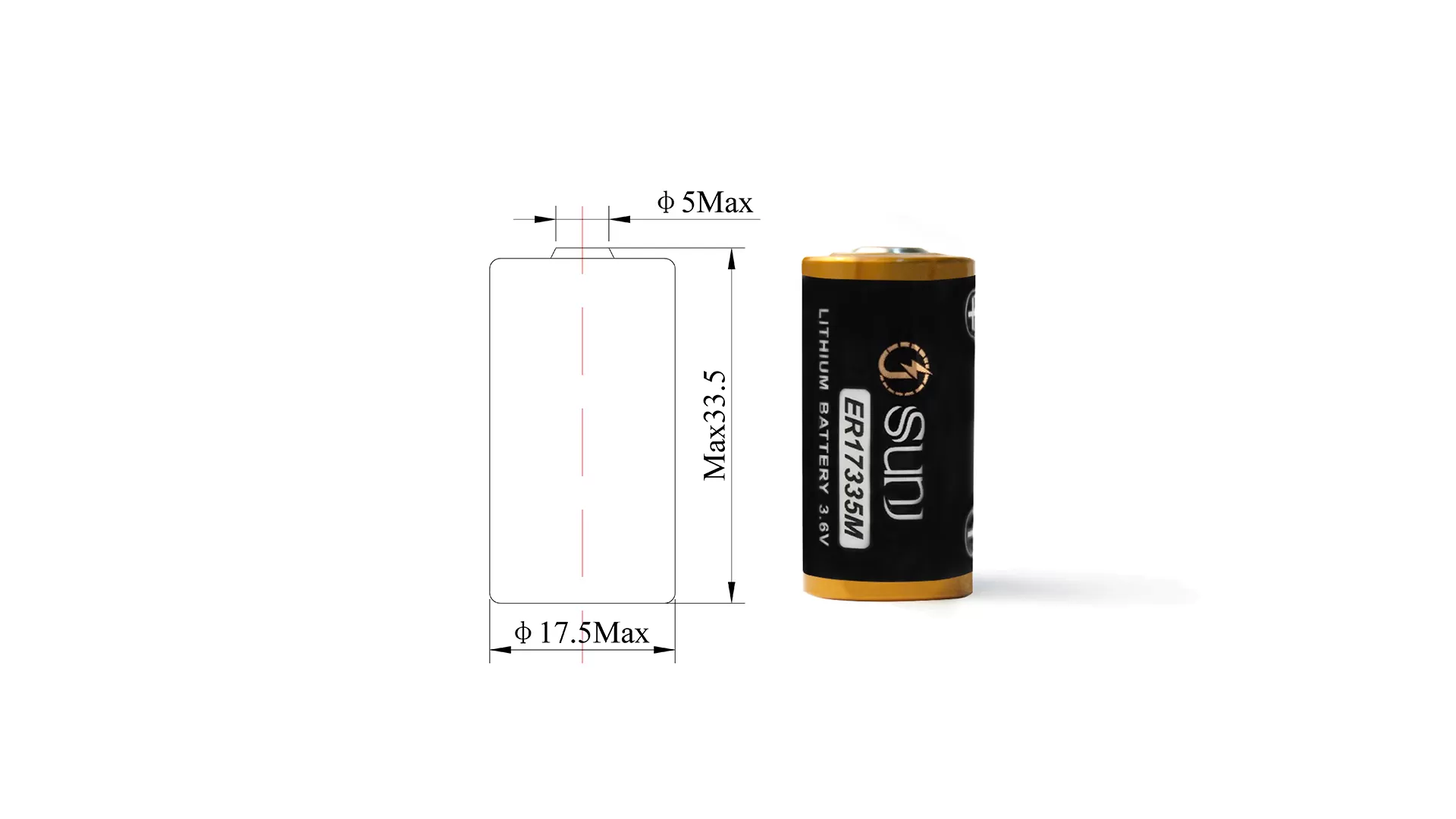

| Dimension | φ17.5x33.5mm | Figure attached |
| Standard weight | About 19g | –– |
| Annual self-discharge rate | ≤1% | 25±3℃，RH 65±10% |
Compatible Part Numbers
LS17330, ER17/33, BR-2/3A, Hawker Eternacell T32/41, T32/51, T32/BAA1, T32/8AA, and others.
▎Note: Compatibility is based on voltage, dimensions, and performance. Please consult our technical support team for replacement or installation advice.
▎Storage Guidelines: Store in a clean, cool (preferably <20°C, not exceeding 30°C), dry, and well-ventilated environment.
Flexible Single Cell Solutions
SUNJ offers customizable battery configurations designed to match different applications and fit your device precisely.
◆ S: Standard Terminals
◆ P: Axial Pins
◆ T: Solder Tabs
◆ Custom Terminals: Available upon request
Warnings
● This is a non-rechargeable lithium battery. Do not charge.
● Keep away from heat, fire, flammable or explosive materials.
● Do not short-circuit, crush, disassemble, incinerate, or expose to temperatures above 100°C.
● Operate only within the recommended temperature range.
Electrical Performance Graph

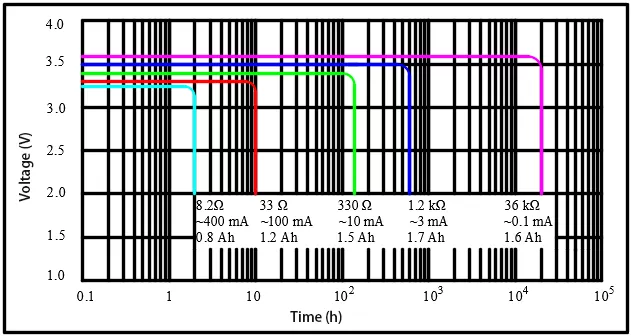

ER17335M Discharge Profiles (25°C) ↓

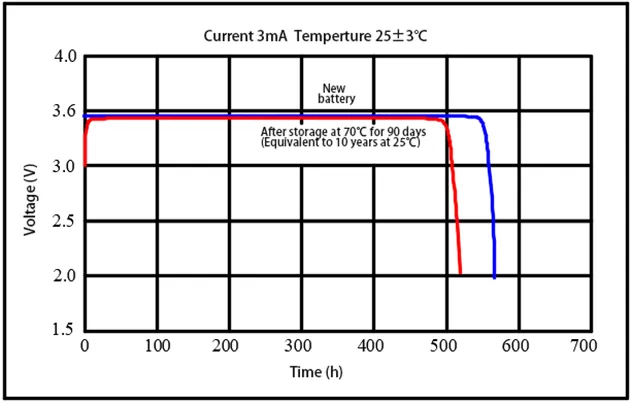

Voltage Recovery After Storage ↓

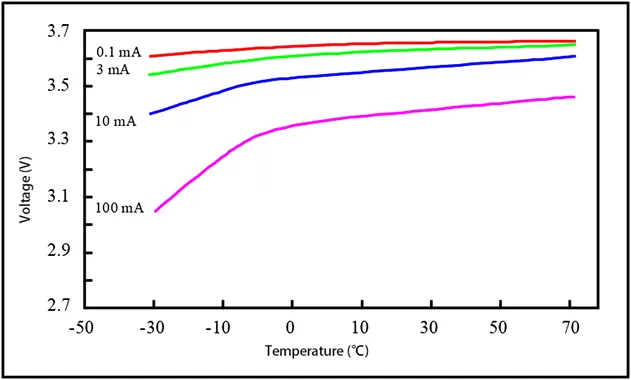

Voltage vs. Temperature curve ↓

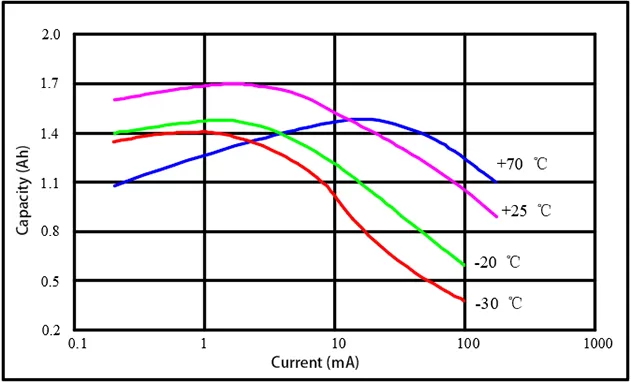

Capacity vs.Current(2.0V cutoff) ↓
Key Features
● High and stable operating voltage (3.3V to 3.6V)
● High specific energy density (450Wh/kg)
● Long shelf life (over 10 years under normal conditions)
● Low self-discharge rate (≤1% per year at 25°C)
● Wide operating temperature range (-55°C to +85°C)
● Spiral-type construction for high power and pulse performance
● Hermetic glass-to-metal sealing
● Non-flammable electrolyte
● High reliability and safety (UL1642 / IEC60086-4 / UN38.3 certified)
● Non-restricted for transport
● Excellent Passivation Resistance
● Lower ESR (Equivalent Serial Resistance)
● Low Magnetic Signature – Suitable for precision and sensitive equipment
Applications
● Smart Utility Meters (Gas, Water, Electric)
● Alarms and Security Systems
● CNC Machines and PLCs
● GPS and Tracking Devices
● Emergency Systems and Medical Devices
● Remote Data Acquisition Systems
● Industrial Automation Equipment
● IoT Devices and Sensors
Empower Your Equipment with SUNJ ER17335M
Power your devices with the long-lasting and high-performance ER17335M lithium battery. Ideal for critical industrial and IoT applications, this battery provides reliable power, exceptional pulse performance, and long-term stability. Contact us today for bulk orders, expert support, and fast global shipping.

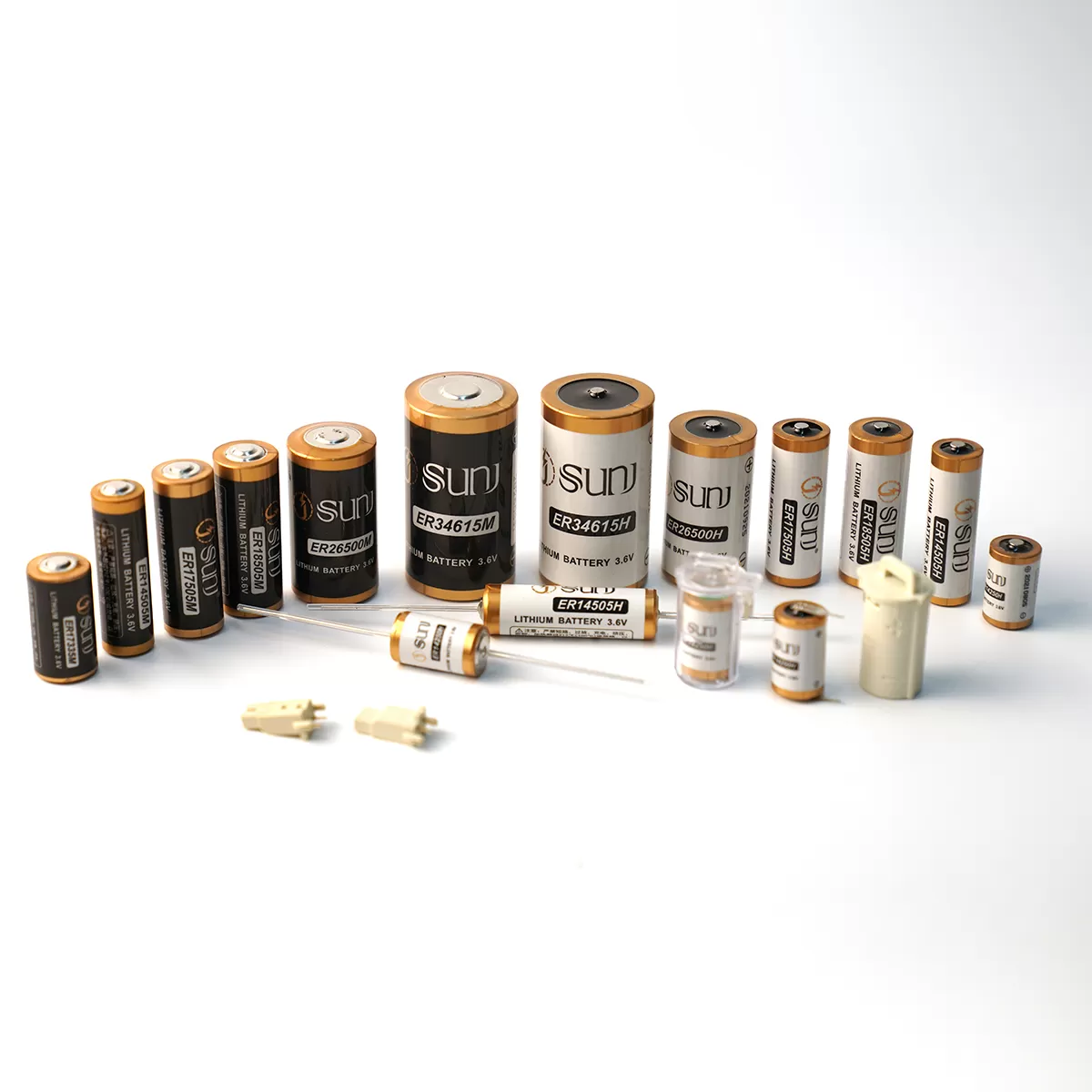

All Li-Socl2 Battery Specifications
| International Model Size | Max Dimension [mm] | Weight [g] | Nominal Voltage [V] | Nominal Capacity | Max Continuous Operating Current [mA] | Max Pulse Operating Current [mA] | |||
| Model No. | Size | End Voltage [V] | Nominal Current [mA] | Nominal Capacity[mAh] | |||||
| Bobbin Type | |||||||||
| ER10450H | AAA | Φ10.5*45.0 | 10 | 3.6 | 2.0 | 1.0 | 1000 | 20 | 50 |
| ER14250H | 1/2AA | Φ14.5*25.2 | 10 | 3.6 | 2.0 | 1.0 | 1200 | 20 | 50 |
| ER14335H | 2/3AA | Φ14.5*33.5 | 13 | 3.6 | 2.0 | 1.0 | 1650 | 40 | 100 |
| ER14505H | AA | Φ14.5*50.5 | 18 | 3.6 | 2.0 | 1.0 | 2700 | 50 | 100 |
| ER17335H | 2/3AA | Φ17.5*33.5 | 20 | 3.6 | 2.0 | 1.0 | 1900 | 50 | 100 |
| ER17505H | A | Φ17.5*50.5 | 24 | 3.6 | 2.0 | 2.0 | 3600 | 70 | 150 |
| ER18505H | ―― | Φ18.5*50.5 | 30 | 3.6 | 2.0 | 2.0 | 4000 | 100 | 150 |
| ER26500H | C | Φ26.2*50.0 | 53 | 3.6 | 2.0 | 2.0 | 8500 | 100 | 200 |
| ER34585H | ―― | Φ34.2*58.5 | 100 | 3.6 | 2.0 | 2.0 | 16000 | 150 | 300 |
| ER34615H | D | Φ34.2*61.5 | 103 | 3.6 | 2.0 | 2.0 | 19000 | 230 | 400 |
| ER261020H | CC | Φ26.2*102.0 | 100 | 3.6 | 2.0 | 2.0 | 17000 | 250 | 500 |
| ER341245H | DD | Φ34.2*124.5 | 200 | 3.6 | 2.0 | 5.0 | 36000 | 450 | 700 |
| ER9V | ―― | 17.0*26.5*48.5 | 34 | 10.8 | 6.0 | 1.0 | 1200 | 25 | 50 |

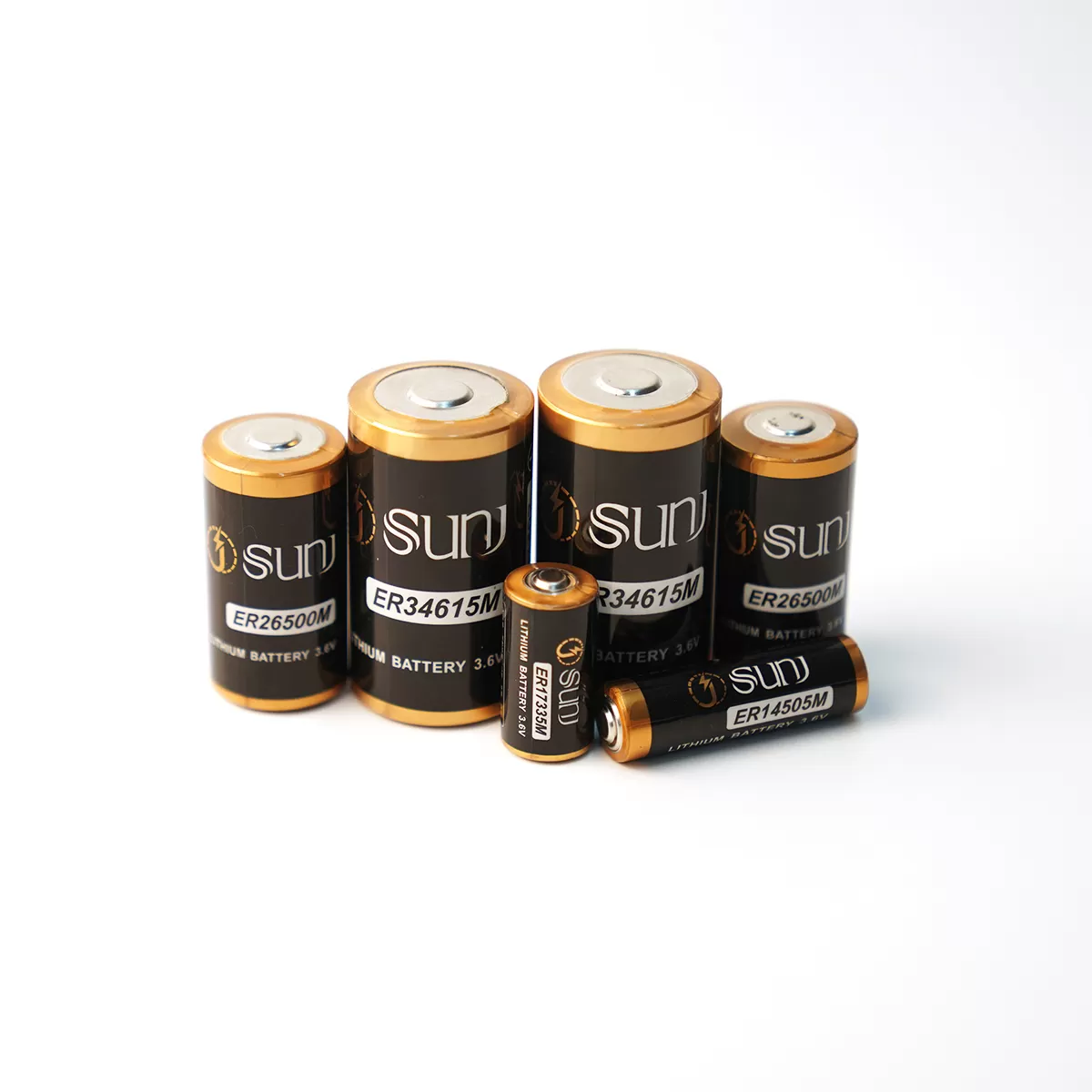

| Spiral Type | |||||||||

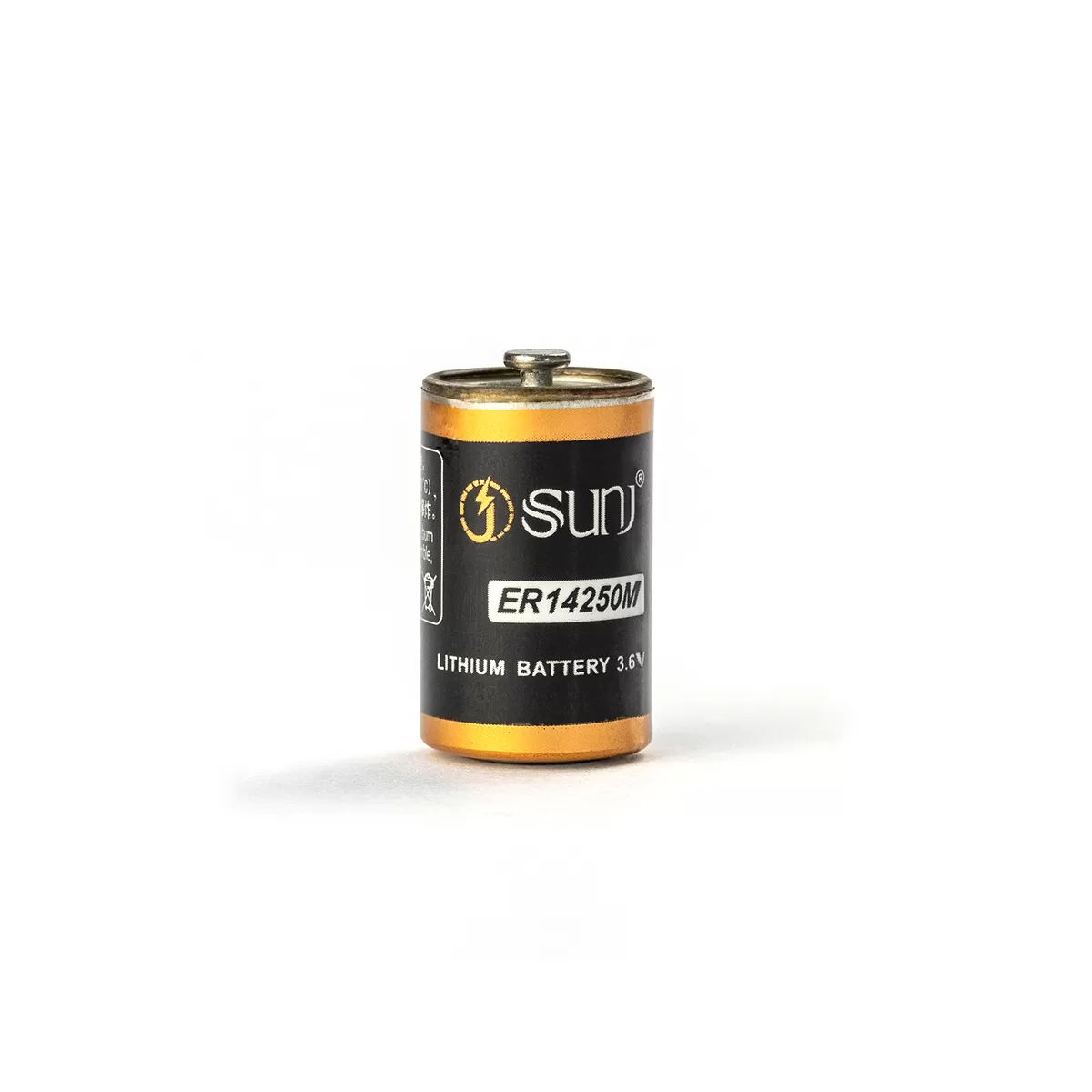

| ER14250M | 1/2AA | Φ14.5*25.5 | 10 | 3.6 | 2.0 | 2.0 | 800 | 100 | 200 |
| ER14335M | 2/3AA | Φ14.5*33.5 | 13 | 3.6 | 2.0 | 2.0 | 1350 | 200 | 600 |
| ER14505M | AA | Φ14.5*50.5 | 19 | 3.6 | 2.0 | 3.0 | 2100 | 400 | 1000 |
| ER17335M | 2/3A | Φ17.5*33.5 | 19 | 3.6 | 2.0 | 3.0 | 1700 | 400 | 1000 |
| ER17505M | A | Φ17.5*50.5 | 26 | 3.6 | 2.0 | 5.0 | 2800 | 400 | 1000 |
| ER18505M | ―― | Φ18.5*50.5 | 30 | 3.6 | 2.0 | 5.0 | 3500 | 500 | 1000 |
| ER26500M | C | Φ26.2*50.5 | 57 | 3.6 | 2.0 | 10 | 6000 | 1000 | 2000 |
| ER34615M | D | Φ34.2*61.5 | 109 | 3.6 | 2.0 | 15 | 13000 | 1800 | 3500 |
| ER9V | ―― | 17.0*26.5*48.5 | 34 | 10.8 | 6.0 | 1.0 | 1200 | 25 | 50 |
Selection Guidelines:
◆ High Current / Pulse Applications → Spiral-type Cells
◆ Long-Term, Low-Current Applications → Bobbin-type Cells
◆ Higher Capacity Needs → Larger Size Models
Flexible Battery Pack Solutions
For projects requiring higher voltage or capacity, battery packs can be customized by combining multiple cells.
Our battery pack solutions are designed for easy integration and tailored to specific voltage, capacity, and size requirements.
By connecting ER cells in series or parallel, we create custom battery packs optimized for performance and safety in device applications.
Pack Customization Includes:
◆ Series and parallel configurations
◆ Custom connectors and wiring harnesses
◆ Encapsulation, heat-shrink, or plastic casing options
◆ PCM/PCB protection circuits and safety components
◆ IP-rated waterproofing solutions available upon request
◆ Capacitors for voltage stabilization and pulse current support
