ER14505M AA 3.6V
ER14505M AA 3.6V Lithium Battery – High Power, Spiral-Type, Long Life, Fast Shipping.
ER14505M AA 3.6V Lithium Battery – High Power, Spiral-Type, Long Life, Fast Shipping.

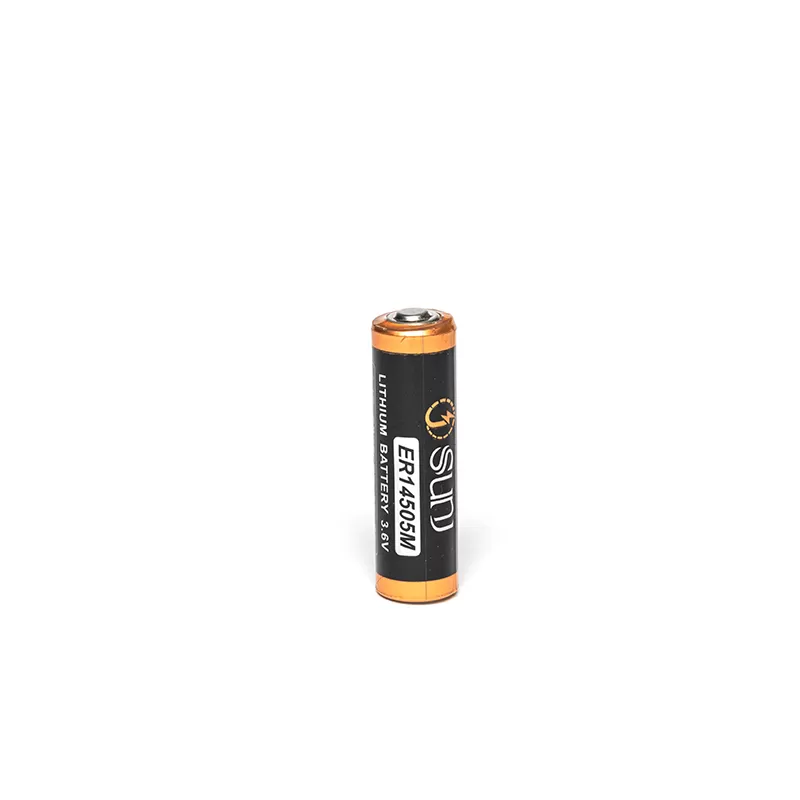

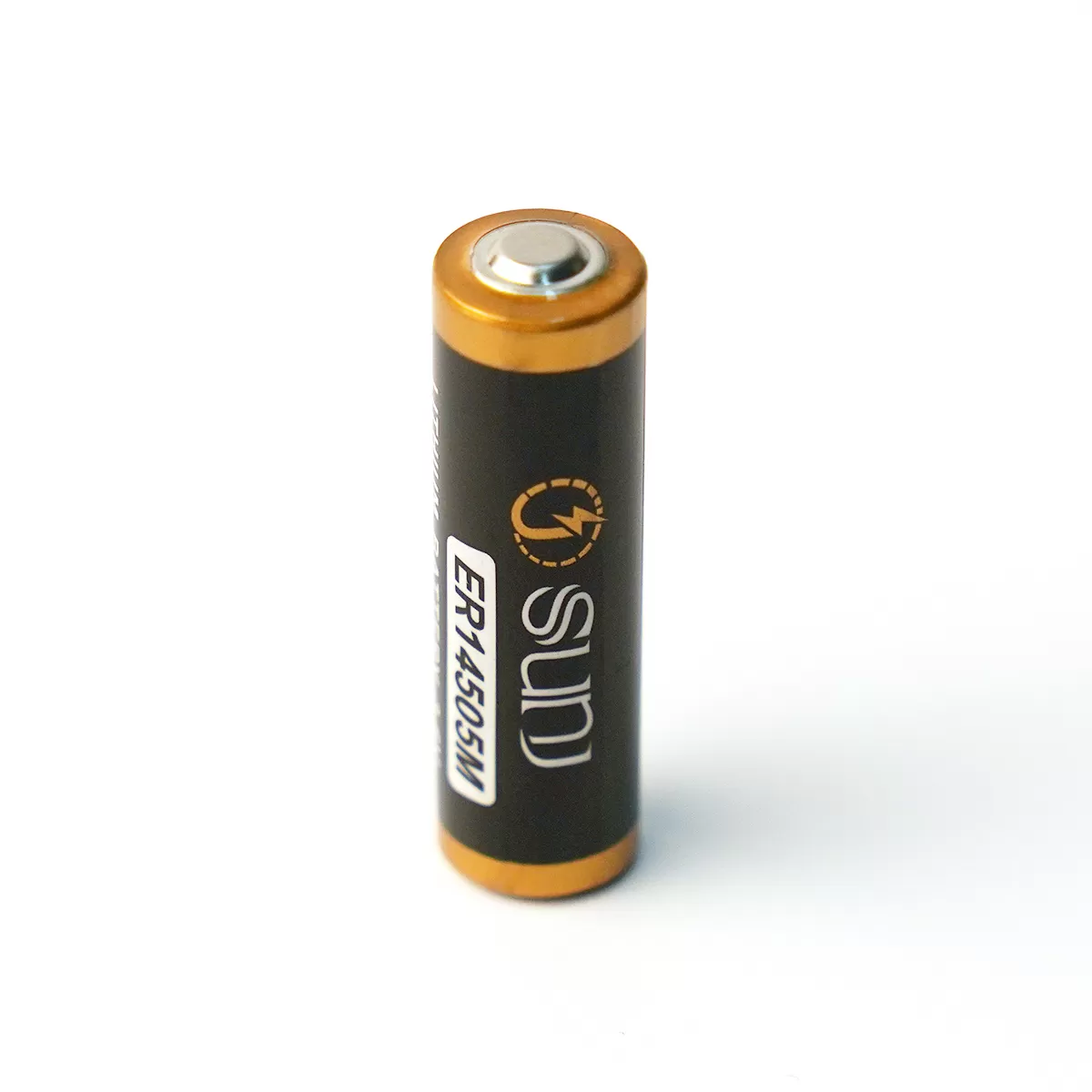

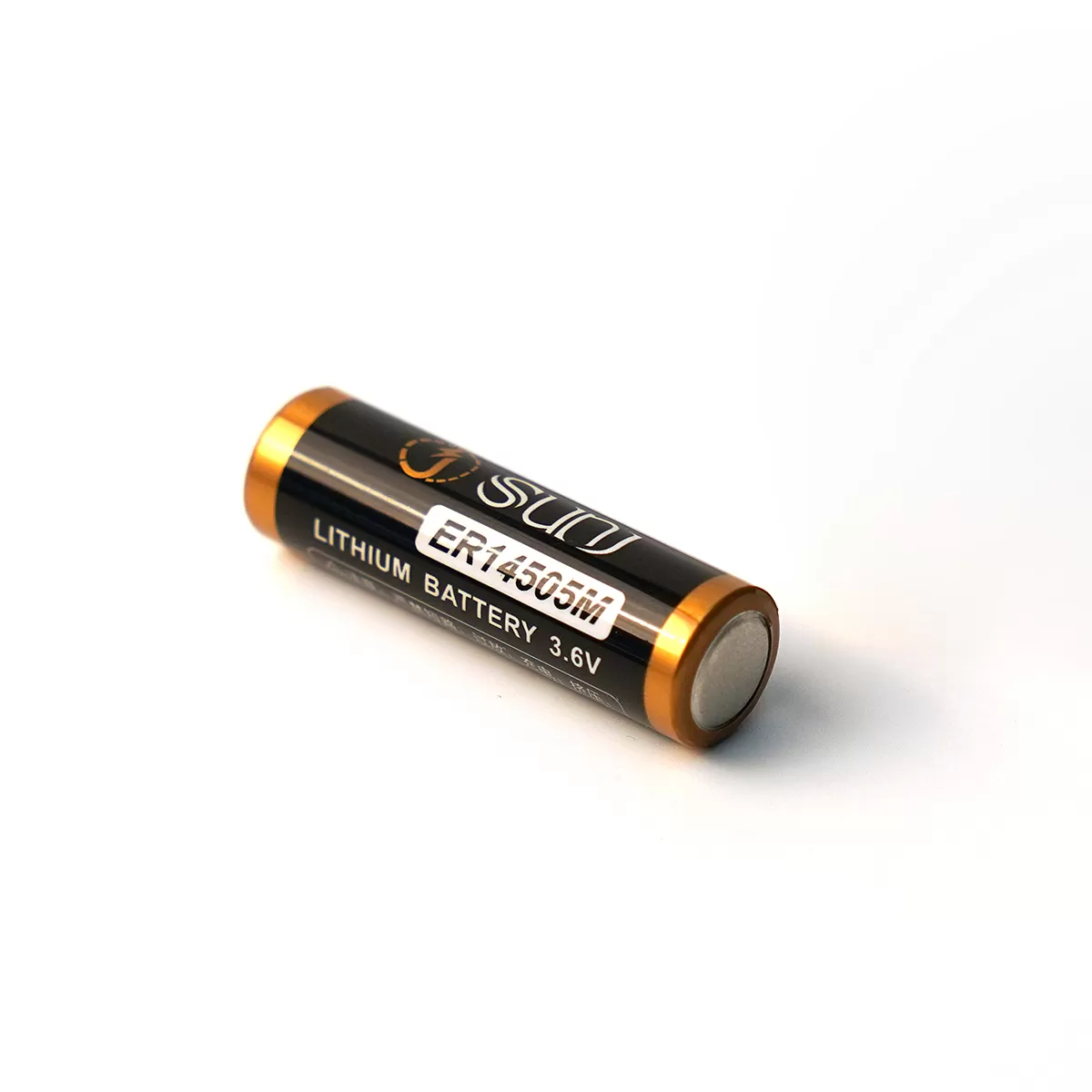

The ER14505M is a high-power, AA-size, 3.6V lithium thionyl chloride (Li-SOCl₂) battery, designed for applications requiring high pulse current, stable performance, and long-term reliability. With a spiral-type construction, this non-rechargeable lithium battery offers a nominal capacity of 2100mAh and an impressive energy density of over 450Wh/kg, making it ideal for demanding industrial and professional use.
This battery features hermetic glass-to-metal sealing and a rugged stainless-steel housing, providing superior leakage resistance and safety in harsh environments. It is well-suited for smart metering, tracking devices, IoT sensors, security systems, and scientific instruments, where consistent, long-lasting power is critical.
All SUNJ batteries are manufactured to strict quality standards and are tested for safety, performance, and transport in compliance with IEC60086-4, UL1642, UN38.3, MSDS, and RoHS certifications.
Basic Parameters
| Subject | Parameters | Remark |
| Specification | AA | Spiral-type, stainless steel shell, fully sealed structure. |
| Nominal voltage | 3.6V | –– |
| Nominal capacity | 2100mAh | 3mA, 25±3℃，cut-off at 2.0V |
| Max continuous discharge current | 400mA | –– |
| Max available pulse current | 1000mA | –– |
| Operating temperature | -55℃~+80℃ | Elevated operating temperatures can cause reduced pulse capacity and low voltage readings. For temperatures exceeding +40℃ or falling below -20℃, consult SUNJ. |
| Dimension | φ14.5x50.5mm | Figure attached |
| Standard weight | About 19g | –– |
| Annual self-discharge rate | ≤1% | 25±3℃，RH 65±10% |
Compatible Part Numbers
TLH-5903, XL-060H, XL-060F, TL5104, TL2100, SL-760, T06/41, T06/51, LS6, LS14500, LAA, VL-AA, 3B940, LTC17C, LTC-17C, LR07, ER6, ER6AA, ER6H, NSN 6135-01-301-8776, Taclane Battery, and more.
▎Note: Compatibility is based on voltage, dimensions, and performance. Please consult our technical support team for replacement or installation advice.
▎Storage Guidelines: Store in a clean, cool (preferably <20°C, not exceeding 30°C), dry, and well-ventilated environment.

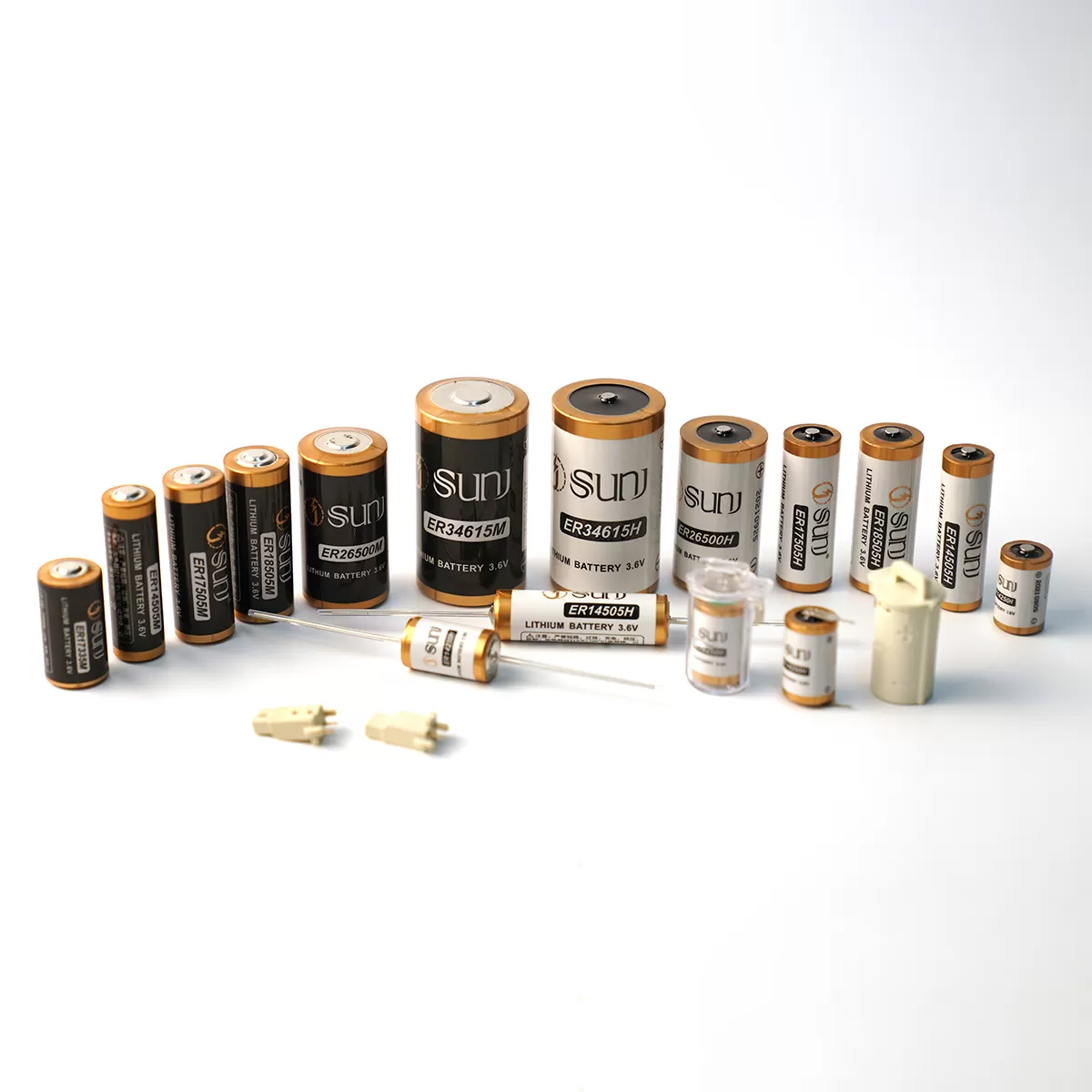

Flexible Single Cell and Pack Options
SUNJ offers flexible battery configurations to suit various applications:
◆ S: Standard Terminals
◆ T: Solder Tabs
◆ P: Axial Pins
◆ Custom Options: Available upon request
▎Note: For projects requiring higher voltage or capacity, battery packs can be customized by combining multiple cells.
Warnings
● This is a non-rechargeable lithium battery. Do not charge.
● Keep away from heat, fire, flammable or explosive materials.
● Do not short-circuit, crush, disassemble, incinerate, or expose to temperatures above 100°C.
● Operate only within the recommended temperature range.
Electrical Performance Graph

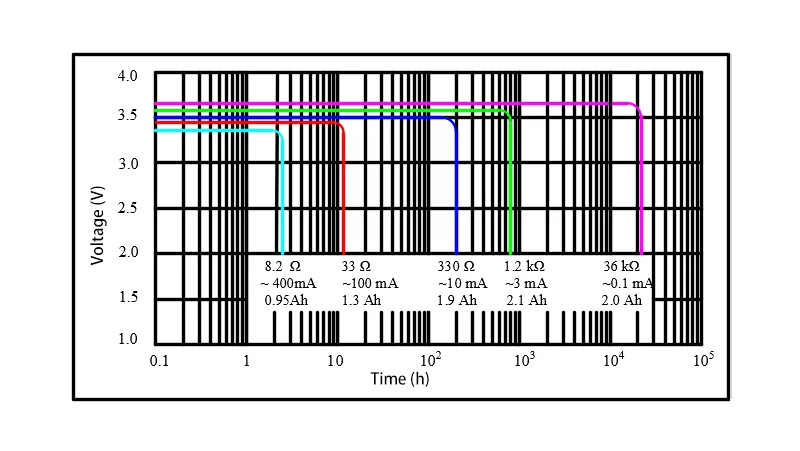

ER14505M Discharge Profiles (25℃)↓

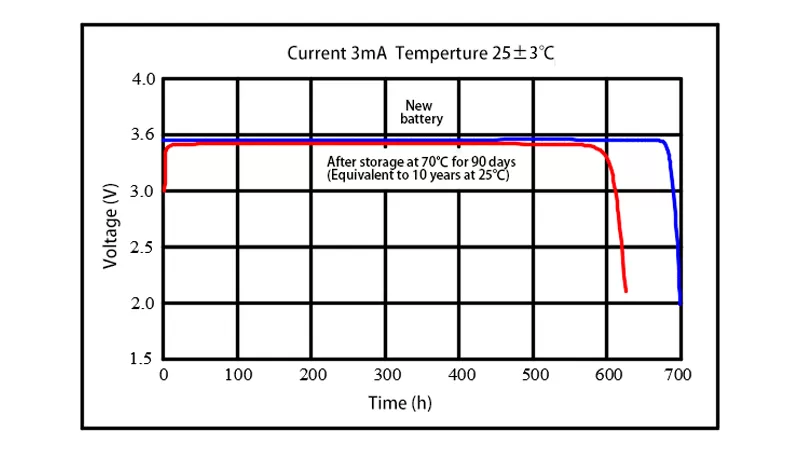

Voltage Recovery After Storage↓
Voltage vs. Temperature curve↓
Capacity vs.Current(2.0 cutoff)↓
Key Features
● High and Stable Voltage: Consistent 3.6V output with an open circuit voltage of ≥3.65V, ensuring reliable performance in high-drain devices.
● High Energy Density: Over 450Wh/kg, supporting extended device runtime and product miniaturization.
● Wide Operating Temperature Range: Reliable performance from -55°C to +80°C, suitable for extreme environments.
● Long Shelf Life & Low Self-Discharge: Up to 10 years of storage with an annual self-discharge rate of ≤1% at 25°C.
● Spiral-Type (High Power) Construction: Designed for high pulse and continuous discharge, ideal for power-intensive applications.
● Superior Safety: Non-flammable electrolyte, hermetic glass-to-metal sealing, and stainless steel housing for enhanced safety.
● Transport Friendly: Non-restricted for air and sea transport; fully compliant with IEC60086-4, UN38.3, MSDS, CE, and RoHS.
● High Pulse Capability: Delivers high pulses and continuous high-rate current.
● Low Magnetic Signature: Suitable for precision electronics and sensitive measurement instruments.
● Excellent Passivation Resistance: Consistent performance even after extended storage.
Application Fields
The ER14505M lithium battery is widely used in:
● Smart Meters: Water, gas, and electricity meters (AMR/AMI systems)
● GPS Trackers: Vehicle tracking, fleet management, asset monitoring
● IoT Sensors: Wireless data loggers, remote sensors, and smart devices
●Automotive Electronics: TPMS (Tire Pressure Monitoring Systems) and telematics
● Medical Devices: Portable diagnostic equipment and emergency monitoring
● Security Systems: Alarms, surveillance cameras, and access control systems
● Industrial Instruments: Data acquisition, PLC backup, and real-time clocks
● Military and Aerospace: Field sensors, rugged electronics, and tactical devices
● Oil and Gas Exploration: Downhole sensors and remote monitoring
Why Choose SUNJ ER14505M?
Choose the ER14505M for unmatched power, reliability, and performance:
● Direct Factory Pricing: Save with bulk order discounts and direct-from-manufacturer pricing.
● Fast Global Shipping: Secure packaging, rapid delivery, and responsive support.
● OEM/ODM Support: Custom labeling and packaging options available.
● Field-Proven Quality: Trusted by professionals in critical industries worldwide.
● Comprehensive Certifications: Fully compliant with global safety and transport standards.
All Li-Socl2 Battery Specifications
| International Model Size | Max Dimension [mm] | Weight [g] | Nominal Voltage [V] | Nominal Capacity | Max Continuous Operating Current [mA] | Max Pulse Operating Current [mA] | |||
| Model No. | Size | End Voltage [V] | Nominal Current [mA] | Nominal Capacity[mAh] | |||||
| Bobbin Type | |||||||||
| ER10450H | AAA | Φ10.5*45.0 | 10 | 3.6 | 2.0 | 1.0 | 1000 | 20 | 50 |
| ER14250H | 1/2AA | Φ14.5*25.2 | 10 | 3.6 | 2.0 | 1.0 | 1200 | 20 | 50 |
| ER14335H | 2/3AA | Φ14.5*33.5 | 13 | 3.6 | 2.0 | 1.0 | 1650 | 40 | 100 |
| ER14505H | AA | Φ14.5*50.5 | 18 | 3.6 | 2.0 | 1.0 | 2700 | 50 | 100 |
| ER17335H | 2/3AA | Φ17.5*33.5 | 20 | 3.6 | 2.0 | 1.0 | 1900 | 50 | 100 |
| ER17505H | A | Φ17.5*50.5 | 24 | 3.6 | 2.0 | 2.0 | 3600 | 70 | 150 |
| ER18505H | ―― | Φ18.5*50.5 | 30 | 3.6 | 2.0 | 2.0 | 4000 | 100 | 150 |
| ER26500H | C | Φ26.2*50.0 | 53 | 3.6 | 2.0 | 2.0 | 8500 | 100 | 200 |
| ER34585H | ―― | Φ34.2*58.5 | 100 | 3.6 | 2.0 | 2.0 | 16000 | 150 | 300 |
| ER34615H | D | Φ34.2*61.5 | 103 | 3.6 | 2.0 | 2.0 | 19000 | 230 | 400 |
| ER261020H | CC | Φ26.2*102.0 | 100 | 3.6 | 2.0 | 2.0 | 17000 | 250 | 500 |
| ER341245H | DD | Φ34.2*124.5 | 200 | 3.6 | 2.0 | 5.0 | 36000 | 450 | 700 |
| ER9V | ―― | 17.0*26.5*48.5 | 34 | 10.8 | 6.0 | 1.0 | 1200 | 25 | 50 |

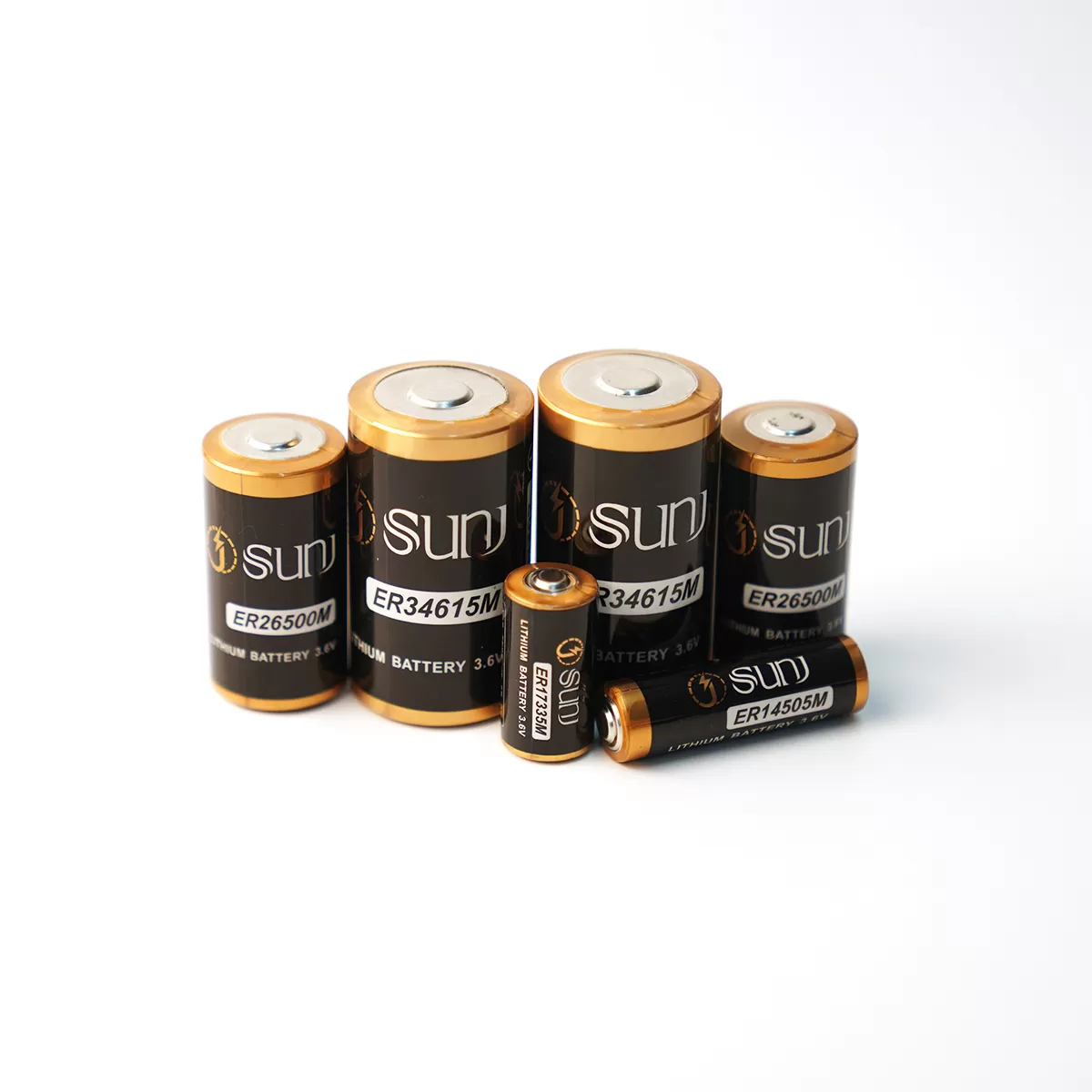

| Spiral Type | |||||||||
| ER14250M | 1/2AA | Φ14.5*25.5 | 10 | 3.6 | 2.0 | 2.0 | 800 | 100 | 200 |
| ER14335M | 2/3AA | Φ14.5*33.5 | 13 | 3.6 | 2.0 | 2.0 | 1350 | 200 | 600 |
| ER14505M | AA | Φ14.5*50.5 | 19 | 3.6 | 2.0 | 3.0 | 2100 | 400 | 1000 |
| ER17335M | 2/3A | Φ17.5*33.5 | 19 | 3.6 | 2.0 | 3.0 | 1700 | 400 | 1000 |
| ER17505M | A | Φ17.5*50.5 | 26 | 3.6 | 2.0 | 5.0 | 2800 | 400 | 1000 |
| ER18505M | ―― | Φ18.5*50.5 | 30 | 3.6 | 2.0 | 5.0 | 3500 | 500 | 1000 |
| ER26500M | C | Φ26.2*50.5 | 57 | 3.6 | 2.0 | 10 | 6000 | 1000 | 2000 |
| ER34615M | D | Φ34.2*61.5 | 109 | 3.6 | 2.0 | 15 | 13000 | 1800 | 3500 |
| ER9V | ―― | 17.0*26.5*48.5 | 34 | 10.8 | 6.0 | 1.0 | 1200 | 25 | 50 |
Selection Guidelines:
◆ High Current / Pulse Applications → Spiral-type Cells
◆ Long-Term, Low-Current Applications → Bobbin-type Cells
◆ Higher Capacity Needs → Larger Size Models
FAQs
Q1: What's the difference between ER14505M and ER14505H?
A1: ER14505M is a high-power, spiral-type battery designed for applications requiring high pulse and continuous discharge. ER14505H is a high-energy, bobbin-type battery optimized for low current, long-duration use.
Q2: Is the ER14505M battery rechargeable?
A2: No, the ER14505M is a primary (non-rechargeable) lithium battery.
Q3: What devices are compatible with ER14505M?
A3: It is ideal for smart meters, GPS trackers, IoT sensors, security systems, and more. It is also compatible with many equivalent models, including LAA, ER6, LS14500, and TLH-5903.
Q4: Does the ER14505M support extreme temperatures?
A4: Yes, it operates reliably from -55°C to +80°C.
Q5: Can I order in bulk, and do you offer discounts?
A5: Yes, SUNJ offers bulk order discounts, fast shipping, and expert support for all customers.
